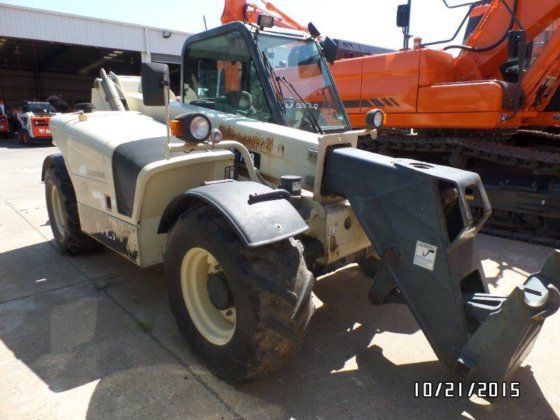

Ingersoll Rand VR723
Browse All Ingersoll Rand or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 16.74 ft in (5100 mm) |
| Ground Clearance | 16.54 ft in (420 mm) |
| Width Over Tires | 7.29 ft in (2220 mm) |
| Overall Height | 0.76 ft in (230 mm) |
| Wheelbase | 0.94 ft in (285 mm) |
| Turning Radius Outside Tires | 12.8 ft in (3900 mm) |
Lift
| Max Lift Height | 23.36 ft in (7120 mm) |
| Max Forward Reach | 7.19 ft in (2190 mm) |
| Max Load At Max Height | 7015.11 lb (3182 kg) |
| Max Lift Capacity | 7015.11 lb (3182 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C-44T diesel |
| Gross Power | 100 hp (74.6 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 304 lb ft (412.2 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 100 amps |
| Drawbar Pull | 10341 lb (4690.6 kg) |
| Tire Size | 400/70x20-166A2 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
