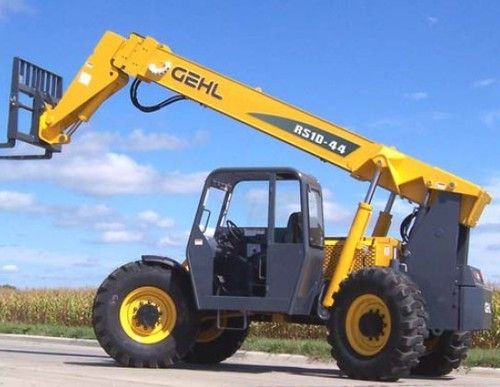

Gehl RS10-44
Browse All Gehl or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.02 ft in (6100 mm) |
| Ground Clearance | 1.5 ft in (457 mm) |
| Width Over Tires | 8.21 ft in (2500 mm) |
| Overall Height | 7.88 ft in (2400 mm) |
| Wheelbase | 9.85 ft in (3000 mm) |
| Turning Radius Outside Tires | 13.95 ft in (4250 mm) |
Lift
| Max Lift Height | 43.97 ft in (13400 mm) |
| Max Forward Reach | 30.52 ft in (9300 mm) |
| Max Load At Max Reach | 1500 lb (680.39 kg) |
| Max Load At Max Height | 8000 lb (3628.74 kg) |
| Max Lift Capacity | 10000 lb (4535.93 kg) |
Engine
| Engine Make | 2240 |
| Gross Power | 115 hp (85.8 kw) |
| Power Measured @ | 2500 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 25500 lb (11566.7 kg) |
| Fuel Capacity | 47.1 gal (178 L) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Max Speed - Forward | 19.3 mph (31.1 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 39.9 gal/min (151 L/min) |
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
