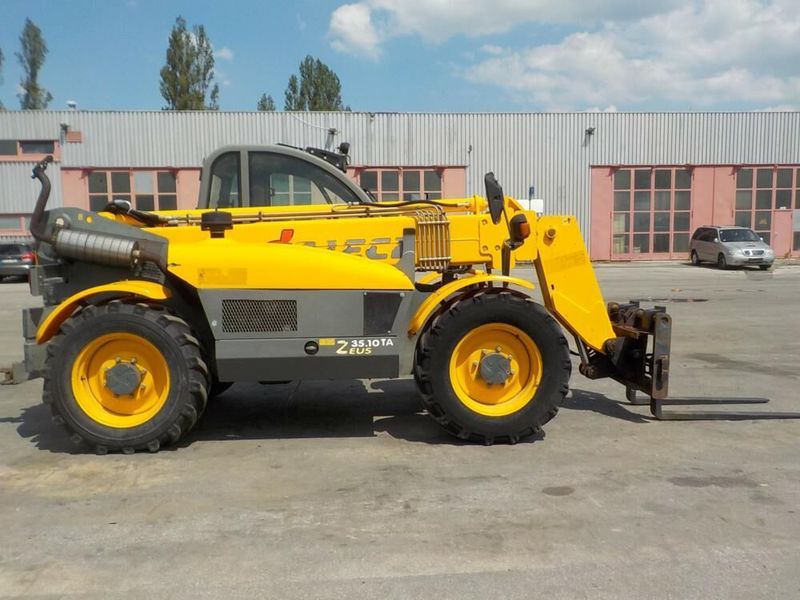

DIECI Zeus 35.10
Browse All DIECI or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 16.25 ft in (4950 mm) |
| Width Over Tires | 7.29 ft in (2220 mm) |
| Overall Height | 7.52 ft in (2290 mm) |
Lift
| Max Lift Height | 31.99 ft in (9750 mm) |
| Max Forward Reach | 21.33 ft in (6500 mm) |
| Max Lift Capacity | 7716.18 lb (3500 kg) |
| Max Load At Max Height | 4850.17 lb (2200 kg) |
| Max Load At Max Reach | 881.85 lb (400 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2388 |
| Engine Model | F4GE0404A-NA |
| Gross Power | 80.5 hp (60 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 273.7 cu in (4.5 L) |
Operational
| Operating Weight | 16755.2 lb (7600 kg) |
| Fuel Capacity | 25.1 gal (95 L) |
| Hydraulic System Fluid Capacity | 37 gal (140 L) |
| Tire Size | 16/70x20 MPT04 |
Transmission
| Transmission Type | Hydrostatic with variable capacity pump |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 18.7 mph (30 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
Hydraulic
| Pump Type | Gear pump |
| Pump Flow Capacity | 26.5 gal/min (100 L/min) |
| Relief Valve Pressure | 3335.9 psi (23000 kPa) |
