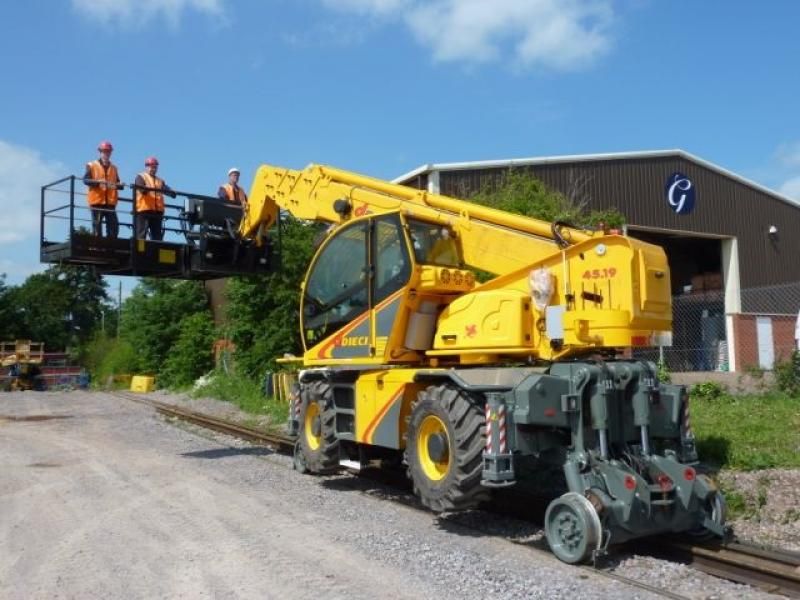

DIECI Pegasus 45.19
Browse All DIECI or Telescopic Forklift Models
Contents:
Lift
| Max Lift Height | 60.37 ft in (18400 mm) |
| Max Forward Reach | 53.81 ft in (16400 mm) |
| Max Lift Capacity | 8818.49 lb (4000 kg) |
| Max Load At Max Height | 2645.55 lb (1200 kg) |
| Max Load At Max Reach | 881.85 lb (400 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1104D-ETA |
| Gross Power | 142.2 hp (106 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 268.5 cu in (4.4 L) |
Operational
| Operating Weight | 36155.9 lb (16400 kg) |
| Fuel Capacity | 47.6 gal (180 L) |
| Hydraulic System Fluid Capacity | 71.4 gal (270 L) |
| Tire Size | 18-R22.5 (Industrial) |
Transmission
| Transmission Type | Hydrostatic with variable capacity pump |
| Max Speed - Forward | 24.9 mph (40 km/h) |
Hydraulic
| Pump Type | Double Gear pump |
| Pump Flow Capacity | 35.7 gal/min (135 L/min) |
| Relief Valve Pressure | 3335.9 psi (23000 kPa) |
