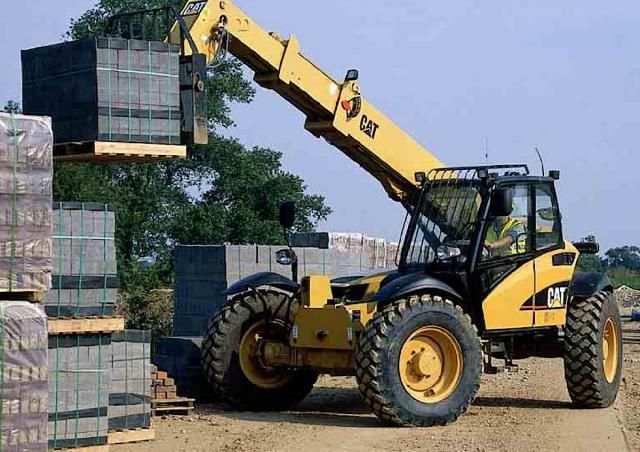

Caterpillar TH340B
Browse All Caterpillar or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 16.25 ft in (4950 mm) |
| Ground Clearance | 1.6 ft in (487.68 mm) |
| Width Over Tires | 8.18 ft in (2492 mm) |
| Overall Height | 7.91 ft in (2410 mm) |
| Wheelbase | 10.01 ft in (3050 mm) |
| Height | 7.9 ft in (2407.92 mm) |
| Turning Radius - Over Tires | 12.3 ft in (3.75 m) |
| Turning Radius Outside Tires | 12.31 ft in (3750 mm) |
| Wheel Base | 10 ft in (3.05 m) |
| Width | 8.2 ft |
| Length - Fork Face | 16.2 ft in (4.94 m) |
| Turning Radius - Over Forks | 15.4 ft in (4.7 m) |
Lift
| Max Lift Height | 29.53 ft in (9000 mm) |
| Max Forward Reach | 21.33 ft in (6500 mm) |
| Max Load At Max Height | 4409.25 lb (2000 kg) |
| Max Load At Max Reach | 1322.78 lb (600 kg) |
| Max Lift Capacity | 6613.87 lb (3000 kg) |
Engine
| Engine Make | 2236 |
| Engine Model | 3054E |
| Gross Power | 99.9 hp (74.5 kw) |
| Net Power | 94.9 hp (70.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 302.5 lb ft (410 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 268 cu in (4.4 L) |
| Bore | 4 in (101.6 mm) |
| Stroke | 5 in (127 mm) |
| Engine Model | Cat 3054E |
| Maximum Torque | 303 lb ft (410.9 Nm) |
Operational
| Operating Weight | 16975.6 lb (7700 kg) |
| Fuel Capacity | 30.4 gal (115 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 105 amps |
| Tire Size | 13.00-24 |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Tires
| Standard | 13.00-24 |
Weights
| Operating Weight | 16970 lb (7697.5 kg) |
Hydraulic
| Pump Type | variable displacement load sensing axial piston pump |
| Pump Flow Capacity | 29.9 gal/min (113 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
Hydraulic System
| Pump Type | Variable Displacement Load Sensing Axial Piston Pump |
| Auxiliary Hydraulic Supply - Intermittent | 23.4 gal/min |
| Auxiliary Hydraulic Supply - Continuous | 15.6 gal/min |
| Maximum System Pressure | 3625 psi |
| Maximum Pump Flow | 29.4 gal/min |
Brakes
| Parking Brake | Dry disc on front axle |
| Foot Brake | Servo assisted on front axle |
Operating Specifications
| Rated Load Capacity | 6600 lb (2993.8 kg) |
| Maximum Lift Height | 30 ft in (9.2 m) |
| Maximum Forward Reach | 21.3 ft in (6.5 m) |
| Top Travel Speed | 20 mph (32.2 km/h) |
| Load At Maximum Height | 4400 lb (1995.9 kg) |
| Load At Maximum Reach | 1320 lb (598.8 kg) |
Service Refill Capacities
| Fuel Tank | 29.9 gal (113.2 L) |
| Hydraulic Tank | 15.6 gal (59.1 L) |
Boom Performance
| Boom Up | 8 s |
| Boom Down | 6 s |
| Tele In | 10 s |
| Tele Out | 8 s |
| Crowd Forward - Dump | 3 s |
| Crowd Backward | 3 s |
| Combined - Up And Out | 16 s |
| Combined - Down And In | 16 s |
Transmission Speeds
| Forward - 4 | 19.9 mph (32 km/h) |
| Forward - 1 | 3.8 mph (6.1 km/h) |
| Forward - 2 | 7.5 mph (12.1 km/h) |
| Forward - 3 | 12.5 mph (20.1 km/h) |
| Reverse - 1 | 3.8 mph (6.1 km/h) |
| Reverse - 2 | 7.5 mph (12.1 km/h) |
| Reverse - 3 | 12.5 mph (20.1 km/h) |
