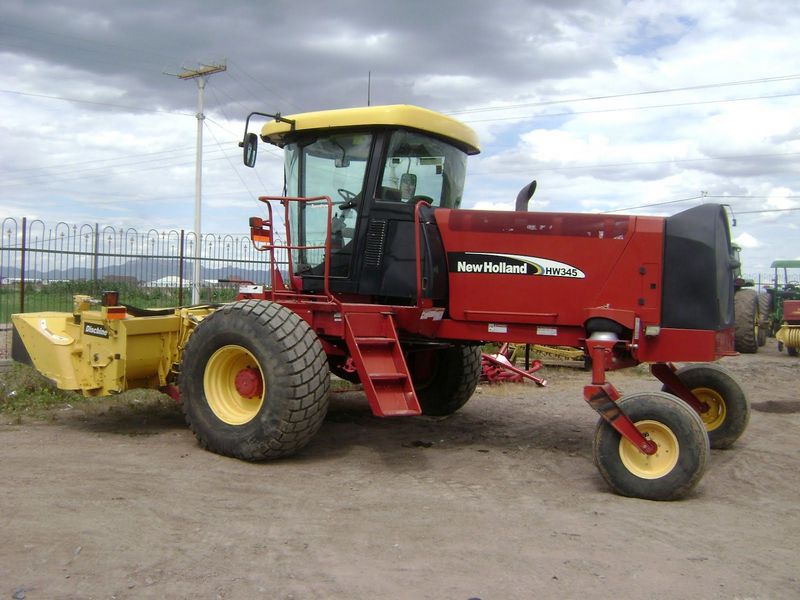

New Holland HW345
Browse All New Holland or Swather Models
Contents:
Dimensions
| Length W/ Header | 22.17 ft in (6757 mm) |
| Height To Top Of Cab | 11.26 ft in (3432 mm) |
| Wheelbase | 11.44 in (3485 mm) |
| Ground Clearance | 36.3 in (922 mm) |
| Length W/O Header | 16.59 ft in (5056 mm) |
| Rear Wheel Tread Width - Max | 120 in (3048 mm) |
| Rear Wheel Tread Width - Min | 90 in (2286 mm) |
| Front Wheel Tread Width | 130.24 in (3308 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2249 |
| Power | 186 hp (138.8 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 456 cu in (7.5 L) |
| Aspiration | Turbocharged with air-to-air intercooler |
Operational
| Operating Weight W/O Attachment | 12300 lb (5579.2 kg) |
| Fuel Capacity | 120 gal (454.3 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 135 amps |
Transmission
| Transmission Type | 2-speed hydrostatic |
| Max Speed | 18 mph (29 km/h) |
| Final Drive Type | Planetary Hubs |
