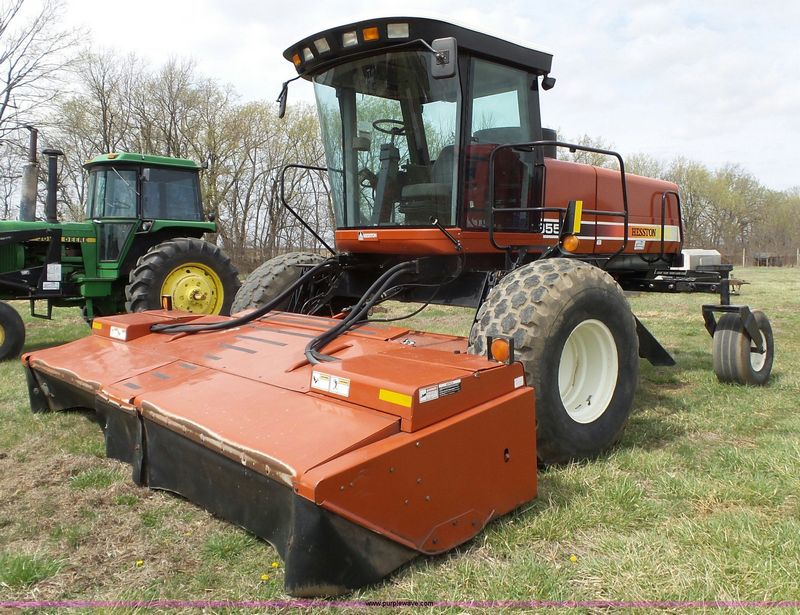

Hesston 8550S
Contents:
Dimensions
| Length W/ Header | 21.33 ft in (6500 mm) |
| Overall Width | 12.7 ft in (3868 mm) |
| Height To Top Of Cab | 11.12 ft in (3388 mm) |
| Wheelbase | 11.67 in (3556 mm) |
| Ground Clearance | 40.71 in (1034 mm) |
| Rear Wheel Tread Width - Max | 120 in (3048 mm) |
| Rear Wheel Tread Width - Min | 84.41 in (2144 mm) |
| Front Wheel Tread Width | 128.9 in (3274 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | Diesel 6B T5.9 |
| Power | 165 hp (123.1 kw) |
| Power Measured @ | 2500 rpm |
| Aspiration | Turbocharged |
| Displacement | 359 cu in (5.9 L) |
Operational
| Operating Weight W/O Attachment | 9060 lb (4109.6 kg) |
| Fuel Capacity | 80 gal (302.9 L) |
| Front Tire Size | 23.1x26 turf tread |
| Rear Tire Size | 14L-16.1 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 95 amps |
Transmission
| Max Speed | 15 mph (24.2 km/h) |
| Final Drive Type | Roller chain/planetary |
