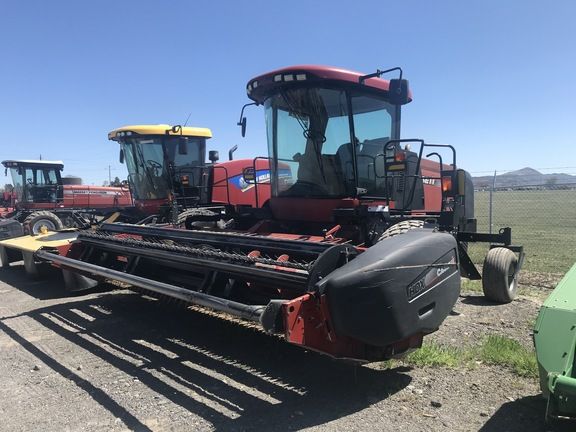

Case IH WD1203
Contents:
Dimensions
| Length W/ Header | 23.31 ft in (7102 mm) |
| Height To Top Of Cab | 11.07 ft in (3372 mm) |
| Wheelbase | 137.56 in (3494 mm) |
| Ground Clearance | 36.3 in (922 mm) |
| Length W/O Header | 16.59 ft in (5056 mm) |
| Track Width (Engine End) | 90 - 105 - 120 in, (2286 - 2667 - 3048 mm) |
| Weight, W/O Header | 10948.16 lb (4966 kg) |
| Rear Wheel Tread Width - Max | 120 in (3048 mm) |
| Front Wheel Tread Width | 126.97 in (3225 mm) |
| Crop Clearance | 36.3 in (922 mm) |
| Rear Wheel Tread Width - Min | 90 in (2286 mm) |
| Track Width | 127 in,(3225mm)-(drive end) |
Speeds
| Maximum Field Speed | 10.3 mph (16.6 km/h) |
| Maximum Road Speed | 15.5 mph (25 km/h) |
Engine
| Emission Tier Level | Tier 3 |
| Radiator Core Type | Outside Rotary Wand |
| Fuel Tank | 120 gal (454 L) |
| Number Of Cylinders | 4 |
| Max. Horsepower | 126 hp (94 kw) |
| Engine Make | Case IH |
| Power | 126 hp (94 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Aspiration | Turbocharged with air to inter cooler |
| Alternator | 135 amps |
Operational
| Operating Weight W/O Attachment | 10950 lb (4966.9 kg) |
| Fuel Capacity | 120 gal (454.3 L) |
| Front Tire Size | 18.4R26 |
| Rear Tire Size | 14Lx16.1, 8PR |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 150 amps |
Transmission
| Transmission Type | Dual speed hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed | 15.5 mph (25 km/h) |
| Final Drive Type | planetary hubs |
Tires
| Tire Size Engine | 14Lx16.1, 8PR |
| Cab Suspension | Standard |
| Drive Tires | 18.4x26, 12PR |
