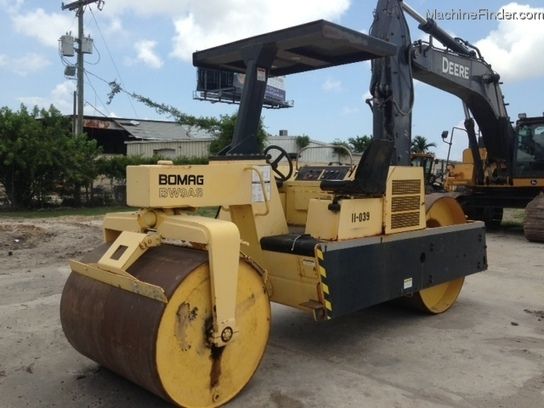

Bomag BW9AS
Browse All Bomag or Static Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 15.25 in (4648 mm) |
| Overall Width | 5.22 ft in (1590 mm) |
| Wheelbase | 11.01 ft in (3353 mm) |
| Ground Clearance | 1.38 ft in (419 mm) |
| Drum Diameter - Front | 3.34 ft in (1016 mm) |
| Height With Rops | 8.92 ft in (2718 mm) |
| Height With Out Rops | 6.17 ft in (1880 mm) |
| Drum Diameter - Rear | 4.42 ft in (1346 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | 4B3.3TAA |
| Gross Power | 84 hp (62.7 kw) |
| Power Measured @ | 2400 rpm |
Operational
| Fuel Capacity | 30.2 gal (114 L) |
| Hydraulic System Fluid Capacity | 15.1 gal (57 L) |
| Cooling System Fluid Capacity | 4 gal (15 L) |
| Spray Water Capacity | 170.4 gal (645 L) |
| Max Speed | 10.2 mph (16.4 km/h) |
| Operating Voltage | 12 V |
Weights
| Operating Weight - Standard | 13986 lb (6344 kg) |
| Operating Weight - Max Ballast | 18876 lb (8562.1 kg) |
| Max Static Linear Load - Drive Drum | 216 lb/in (38.6 kg/cm) |
| Max Static Linear Load - Guide Drum | 162 lb/in (29 kg/cm) |
