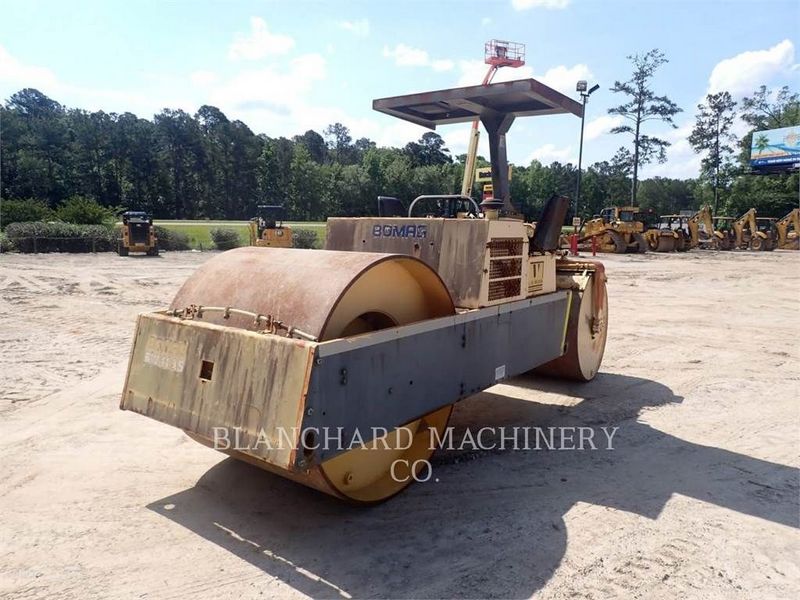

Bomag BW11AS
Browse All Bomag or Static Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 16.51 in (5030 mm) |
| Overall Width | 5.22 ft in (1590 mm) |
| Wheelbase | 11.67 ft in (3555 mm) |
| Ground Clearance | 1.67 ft in (508 mm) |
| Drum Diameter - Front | 4.01 ft in (1220 mm) |
| Height With Rops | 9.17 ft in (2794 mm) |
| Height With Out Rops | 6.42 ft in (1955 mm) |
| Drum Diameter - Rear | 5.01 ft in (1525 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | 4B3.3TAA |
| Gross Power | 78 hp (58.2 kw) |
| Power Measured @ | 2100 rpm |
Operational
| Fuel Capacity | 30.2 gal (114 L) |
| Hydraulic System Fluid Capacity | 15.1 gal (57 L) |
| Cooling System Fluid Capacity | 4 gal (15 L) |
| Spray Water Capacity | 170.4 gal (645 L) |
| Max Speed | 10.2 mph (16.4 km/h) |
| Operating Voltage | 12 V |
Weights
| Operating Weight - Standard | 17320 lb (7856.3 kg) |
| Operating Weight - Max Ballast | 24250 lb (10999.7 kg) |
| Max Static Linear Load - Drive Drum | 251 lb/in (44.9 kg/cm) |
| Max Static Linear Load - Guide Drum | 198 lb/in (35.4 kg/cm) |
