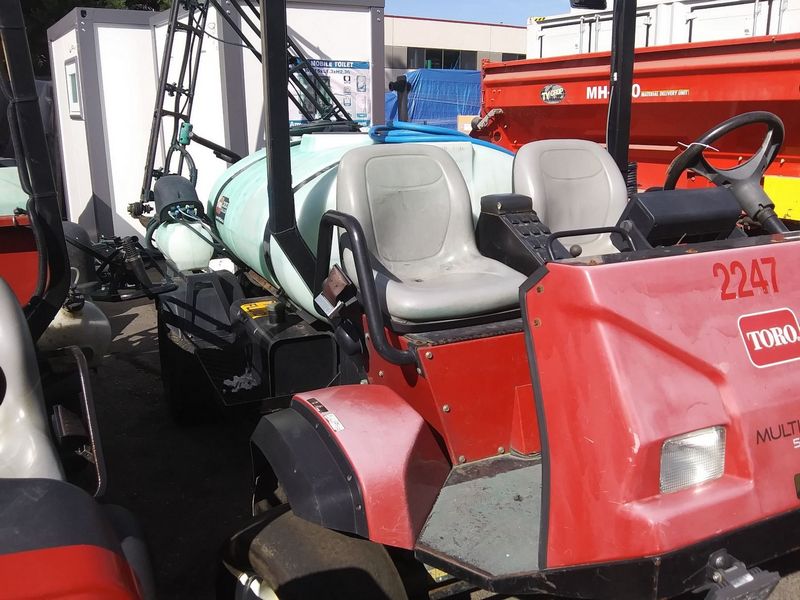

TORO Multi Pro 5700
Contents:
Boom
| Min Boom Width | 18.5 ft in (5.64 m) |
| Nozzle Spacing | 20 in (50.8 cm) |
| Number Of Nozzles - Min | 11 |
| Number Of Sections | 3 |
Dimensions
| Overall Length | 12.83 in (3910 mm) |
| Wheelbase | 6.5 ft in (1980 mm) |
| Transport Width | 5.75 ft in (1750 mm) |
| Transport Height | 7.85 ft in (2390 mm) |
| Ground Clearance | 0.59 ft in (178 mm) |
| Tire Size | Front 23 x 10.5-12, Rear 26.5x14-12 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Gross Power | 35.5 hp (26.5 kw) |
| Displacement | 91 cu in (1.5 L) |
Operational
| Fuel Capacity | 10.6 gal (40.2 L) |
| Solution Tank Capacity | 300 gal (1135.7 L) |
| Dry Weight - Min | 2700 lb (1224.7 kg) |
| Dry Weight - Max | 2700 lb (1224.7 kg) |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed | 10 mph (16.1 km/h) |
