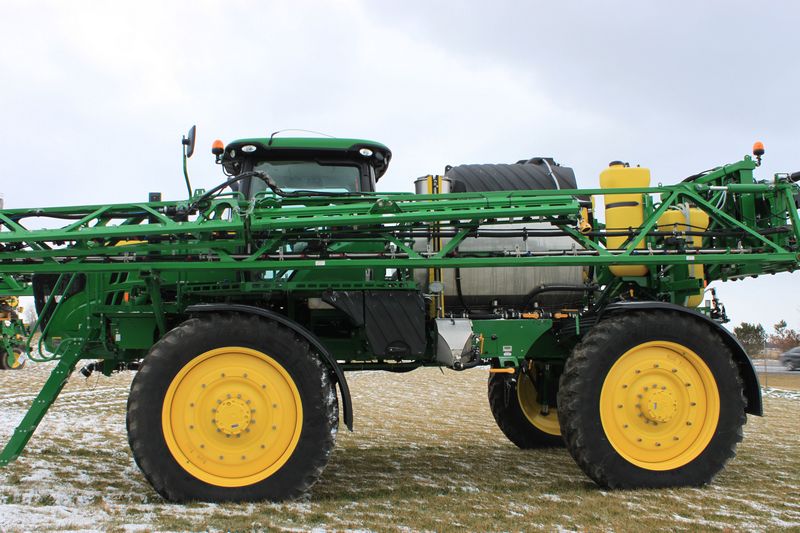

John Deere R4045
Browse All John Deere or Sprayer Models
Contents:
Boom
| Automatic Boom Height | BoomTrac Pro - 5 sensor (optional) |
| Boom Length Options | 27.4, 30.4, or 36.5 m 90, 100, or 120 ft |
| Boom Sections | 13 sections with boom length - 40 m 132 ft 11 sections with boom length - 36.58 m 120 ft 9 sections with boom length - 30.48 m 100 ft 7 sections with boom length - 27.43 m 90 ft |
| Breakaway Width | Stainless-steel boom - 3.3 m 10.8 ft Carbon fiber boom - 3.7 m 12.1 ft |
| Ground Height Adjustment | 50 to 245 cm 19.6 to 96.5 in. |
| Plumbing Material | Stainless or polypropylene |
Engine
| Number Of Cylinders | 6 |
| Fuel Tank Capacity | 155 gal (586.7 L) |
| Displacement | 549.3 cu in (9 L) |
| Emission Level | Final Tier 4 |
| Peak Rated Power | 346 hp (258 kw) |
| Alternator | 200 amp amps |
| Diesel Exhaust Fluid (Def) Tank Capacity | 7.8 gal (29.5 L) |
Drive Train
| Drive Train Type | Hydrostatic |
| Drive | Full-time four-wheel drive (4WD) |
| Shifting | Electrohydraulic |
| Hydraulic Reservoir Capacity | 26 gal (98.4 L) |
| Spray Speed Range | 40 km/h 25 mph |
| Transport Speed, Maximum | 35.3 mph (56.8 km/h) |
Solution System
| Tank Material | Stainless steel |
| Rinse Tank Capacity | 170.7 gal (646 L) |
| Automatic Section Control | John Deere Section Control (optional) |
| Solution System Control | Automatic (optional) or manual |
| Fill Location | Side fill, front fill (optional), and LoadCommand (optional) |
| Chemical Injection Method | Direct injection (optional) |
| Chemical Eductor | Stainless steel |
| Chemical Eductor Capacity (Size) | 8.5 gal (32 L) |
| Flow Meter Size | 2.1 in (5.1 cm) |
| Suction Strainer | 20 mesh |
| Pressure Strainer | 50 mesh |
| Boom Strainer | 80 mesh |
| Capacity | 1199.9 gal (4542 L) |
| Quick Fill Size | 3 in (7.6 cm) |
Chassis
| Suspension | Dual-strut independent wheel air-ride suspension |
| Wheel Base | 169.3 in (430 cm) |
| Dry Compatible | Yes - 5.7 or 8.5 m3 200 or 300 cu ft |
| Crop Clearance With Standard Tires | 147 cm 58 in. |
| Front Tires | 380/105 R50, 420/95 R50, or 480/80 R50 |
| Rear Tires | 380/105 R50, 420/95 R50, or 480/80 R50 |
| Flotation Tires | 620/70 R46 or 800/55 R46 |
| Hydraulic Tread Adjust | Hydraulic |
| Wheel Tread Spacing | 305 to 406 cm 120 to 160 in. |
| Turning Radius | 30.2 ft in (9.2 m) |
| Parking Brakes | Spring-engaged, hydraulic-disengaged wet disk pack |
| Ladder Raise/Lower | Hydraulic |
| Total Weight With 100-Ft Boom | 35595.9 lb (16146 kg) |
| Total Weight With 120-Ft Boom | 36155.9 lb (16400 kg) |
| Total Weight With Carbon Fiber Boom | 36.6-m (120-ft) boom - 15,444 kg 34,048 lb 40.2-m (132-ft) boom - 15,499 kg 34,169 lb |
| Primary Brakes | Hydrostatic |
| Total Weight With 90-Ft Boom | 35423.9 lb (16068 kg) |
