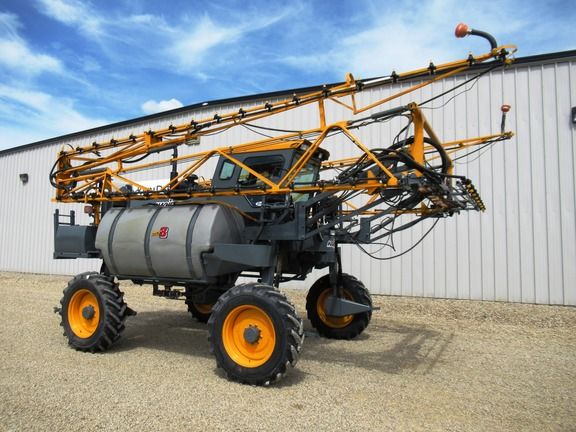

Hagie DTS8T
Contents:
Boom
| Min Boom Width | 60 ft in (18.29 m) |
| Max Boom Width | 90 ft in (27.44 m) |
| Max Adjustable Height | 128.5 in (326.39 cm) |
| Min Adjustable Height | 52 in (132.09 cm) |
Dimensions
| Overall Length | 22 in (6705.6 mm) |
| Wheelbase | 10 ft in (3048 mm) |
| Transport Width | 11.92 ft in (3633.22 mm) |
| Transport Height | 12.33 ft in (3758.19 mm) |
| Ground Clearance | 8.5 ft in (2590.81 mm) |
| Tire Size | 13.6 R38 Goodyear |
| Turning Radius | 18 ft in (5.49 m) |
Engine
| Engine Make | 2347 |
| Engine Model | 6B5.9A |
| Gross Power | 152 hp (113.4 kw) |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | Turbocharged |
Operational
| Fuel Capacity | 80 gal (302.9 L) |
| Solution Tank Capacity | 800 gal (3028.4 L) |
| Dry Weight - Min | 12680 lb (5751.6 kg) |
Transmission
| Transmission Type | Tandem pressure compensated pumps with shift on the go |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed | 24 mph (38.7 km/h) |
