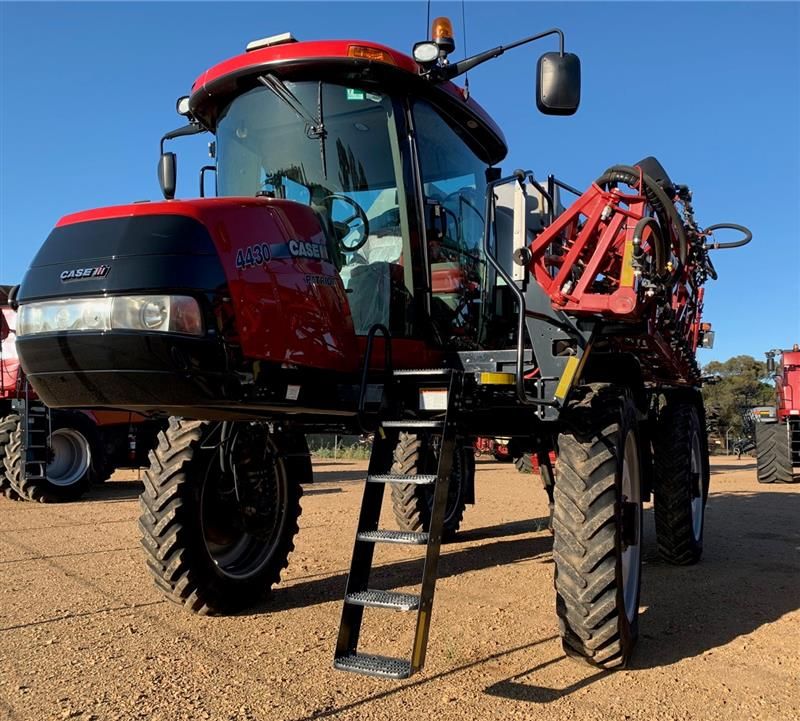

Case IH Patriot 4430
Contents:
Boom
| Max Adjustable Height | 84 in (213.36 cm) |
| Min Adjustable Height | 19 in (48.26 cm) |
Dimensions
| Overall Length | 29.86 in (9100 mm) |
| Wheelbase | 13.46 ft in (4100 mm) |
| Transport Width | 11.49 ft in (3500 mm) |
| Transport Height | 12.14 ft in (3700 mm) |
| Ground Clearance | 4.43 ft in (1350 mm) |
| Turning Radius | 24.61 ft in (7.5 m) |
| Tire Size | Available with 320 / 90R46, 380 / 90R46, 650 / 65R38 and 620 / 70R38 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2408 |
| Engine Model | FPT |
| Gross Power | 335.3 hp (250 kw) |
| Displacement | 531 cu in (8.7 L) |
| Gross Torque | 1143.3 lb ft (1550 Nm) |
Operational
| Fuel Capacity | 140.1 gal (530 L) |
| Solution Tank Capacity | 1199.9 gal (4542 L) |
| Dry Weight - Min | 12428 lb (5637.3 kg) |
| Dry Weight - Max | 13109 lb (5946.2 kg) |
Transmission
| Max Speed | 29.9 mph (48 km/h) |
