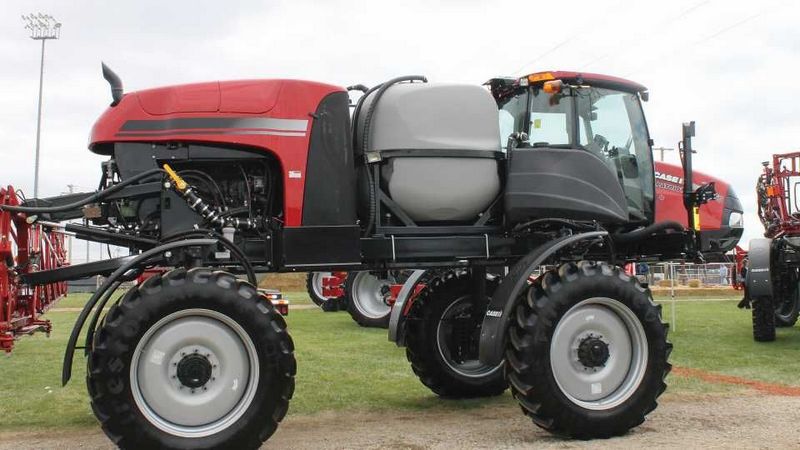

Case IH Patriot 2250
Contents:
Boom
| Min Boom Width | 60 ft in (18.29 m) |
| Max Boom Width | 90 ft in (27.44 m) |
| Overall Length | 28.88 ft in (8.81 m) |
| Overall Height | 12.14 ft in (3.7 m) |
| Overall Width-Wheels Extended | 11.49 ft in (3.5 m) |
| Overall Width-Wheels Retracted | 10.5 ft in (3.2 m) |
| Boom Location | Rear |
| Weight With Widest Boom | 21032.1 lb (9540 kg) |
| Boom Sections | 5 or 6 or 36 with AIM Command FLEX |
| Nozzle Spacing | 20 (50.8) off-center or 20-30 (50.8-76.2) with 30 (76.2) on-center |
Engine
| Emission Tier Level | Tier 4 B or Final |
| Engine Position Front Or Rear | Rear |
| Number Of Cylinders | 6 |
| Engine Make | Case IH FPT |
| Engine Model | NEF 6.7 |
| Rated Power | 175 hp (130.5 kw) |
| Displacement | 408.9 cu in (6.7 L) |
| Peak Torque | 612 lb ft (829.8 Nm) |
| Peak Rated Power | 190 hp (141.7 kw) |
| Alternator | 175 amps |
Drive Train
| Speed Ranges | 4 ranges, shift on the go |
| Travel Speeds - 1st | 28 mph (45.1 km/h) |
| Parking Brakes | Spring-applied hydraulic released wet disc, all wheels |
| Wheel Drive | Full-time 4WD |
| Drive System Description | Hydrostatic |
| Primary Service Brake | Drive system dynamic braking |
| Secondary Service Brake | Dry disks on front wheels |
Capacities
| Hydraulic Oil Reservoir | 28 gal (106 L) |
| Rinse Tank | 74 gal (280.2 L) |
| Hand Wash Tank | 4.5 gal (17.1 L) |
| Dry Material Box Option In Place Of Tank | No |
| Foam Marker Tank | 7 gal (26.5 L) |
| Fuel Tank | 120 gal (454.3 L) |
| Diesel Exhaust Fluid (Def) Tank | 21 gal (79.5 L) |
Hydraulic System
| Chemical Eductor | Optional, stainless steel |
Solution System
| Solution System Tank | 660 gal (2498.4 L) |
| Solution Fill Connection-Left Side | 2 in (50.8 mm) |
| Solution Fill Connection- Front Fill | Optional |
| Solution Pump | Centrifugal-hydraulic motor driven |
| Tank Material | Polyethylene |
Chassis
| Suspension | Trailing-link with coil spring & shock standard, Active susp. optional |
| Steering System | 2WS, Hydraulic |
| Wheel Track Spacing | 120 in (304.8 cm) |
| Total Suspension Travel | 11 in (279.4 mm) |
| Wheel Base | 140 in (3556 mm) |
| Turning Radius | 22.7 ft in (6.9 m) |
