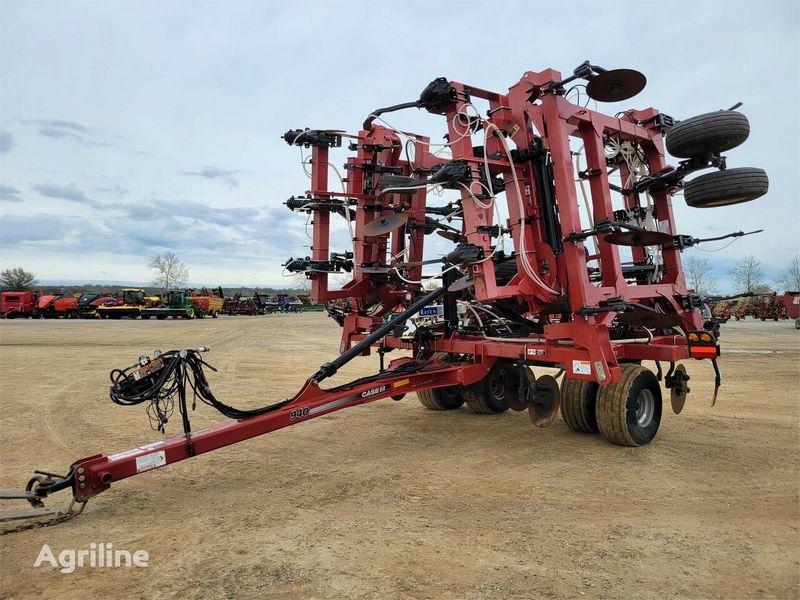

Case IH NUTRI-PLACER 940 60 FT
Contents:
Dimensions
| Transport Width | 18.77 ft in (5720 mm) |
| Transport Height | 13.75 ft in (4190 mm) |
| Coulter Diameter | 24.02 in (610 mm) |
Configuration
| Transport Folding Method | 7-section fold (fold forward outer wing) |
| Row Spacings | 30 in (762 mm) |
| Fertilizer Material | Dry or Anhydrous |
| Working Width | 60.1 ft in (18.3 m) |
| Number Of Rows | 48 15 in rows or 24 30 in rows |
Drawbar
| Description | Matched to largest tractors |
Frame
| Toolbar Rigid Or Flexible | 5 Section flex |
Engine
| Engine Make | Case IH |
| Engine Model | Nutri-Placer 940, 60 Ft. |
| Power | 549.9 hp (410 kw) |
Shanks
| Sealing Discs, Closing Discs, Berm Builder | 18 (457) in (mm) smooth or notched |
| Shank Trip Force | 1250.1 lb (567 kg) |
Weights
| Weight | 22500.4 lb (10206 kg) |
Tires
| Main Frame Tire Size | 16.5-16.1, 14 ply F1 |
| Wing Frame Tire Size | 12.5L-15, 10 ply F1 |
Hydraulic System
| Number Of Remote Control Valves | 2 |
