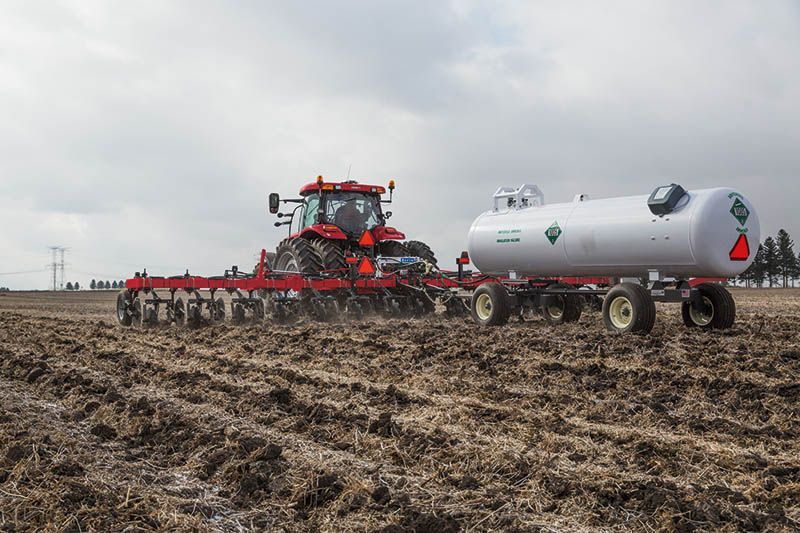

Case IH NUTRI-PLACER 5300, 37.5 FT
Contents:
Dimensions
| Transport Width | 17.39 ft in (5300 mm) |
| Coulter Diameter | 24 in (609.6 mm) |
Configuration
| Transport Folding Method | Wing fold, 145 degrees |
| Row Spacings | Various, 15 to 40 (381 to 1016) in (mm) |
| Fertilizer Material | Anhydrous |
| Working Width | 37.5 ft in (11.4 m) |
| Number Of Rows | up to 30 rows @ 15 in |
Drawbar
| Description | 3-point hitch Category 3 |
Frame
| Toolbar Rigid Or Flexible | 3 Section flex |
Engine
| Engine Make | Case IH |
| Engine Model | Nutri-Placer 5300, 37.5 Ft. |
| Power | 300.4 hp (224 kw) |
Shanks
| Sealing Discs, Closing Discs, Berm Builder | 14 or 18 (356 or 457) smooth or notched |
| Shank Trip Force | 1250.1 lb (567 kg) |
Tires
| Main Frame Tire Size | 7.5x14 gauge wheels |
| Wing Frame Tire Size | 7.5x14 gauge wheels |
Hydraulic System
| Number Of Remote Control Valves | 1 |
