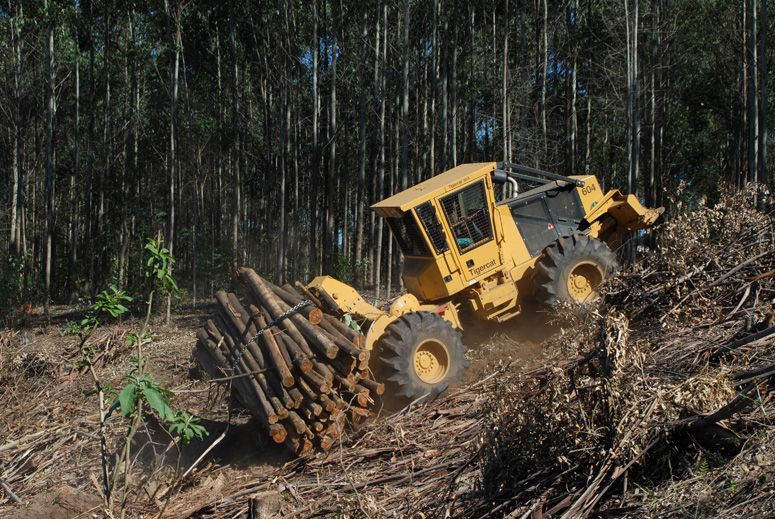

Tigercat 604C
Contents:
Dimensions
| Overall Length | 21.67 ft in (6605 mm) |
| Overall Width | 8.67 ft in (2640 mm) |
| Height To Top Of Cab | 10.01 ft in (3050 mm) |
| Ground Clearance | 1.68 ft in (510 mm) |
| Wheelbase | 11.83 ft in (3605 mm) |
| Max Line Pull - Bare Drum | 40000 lb (177.93 kN) |
| Drum Capacity At Cable Width | 213.26 ft in (65 m) |
| Drum Diameter | 12.01 in (305 mm) |
| Cable Width | 1 in (25.4 mm) |
| Max Line Speed | 173.89 ft/min (53 m/min) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB6.7 |
| Gross Power | 190 hp (141.7 kw) |
Operational
| Operating Weight | 26003.6 lb (11795 kg) |
| Fuel Capacity | 46.3 gal (175 L) |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Axle Oscillation | 15 degrees |
| Tire Size | 23.1 x 26 |
Transmission
| Transmission Type | single-speed mechanical, variable speed hydrostatic |
| Max Speed - Forward | 11 mph (17.8 km/h) |
Hydraulic
| Pump Type | Variable displacement axial piston |
