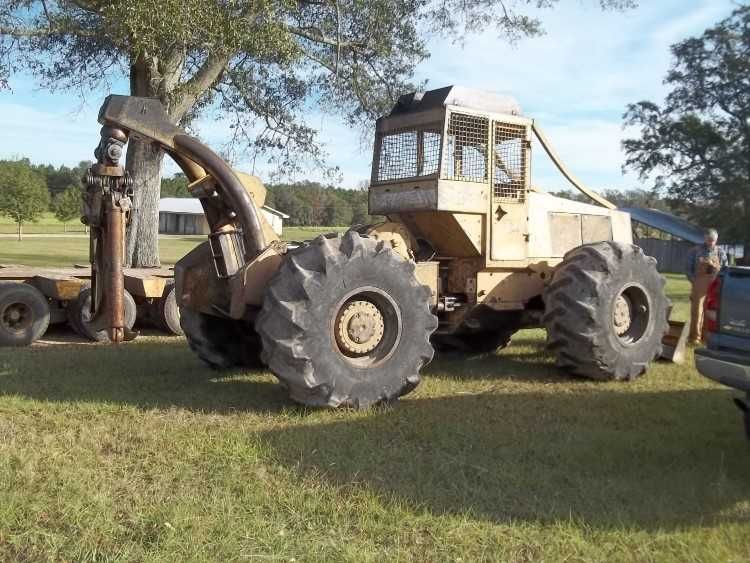

Ranger F66DS
Contents:
Dimensions
| Overall Width | 9.05 ft in (2758 mm) |
| Height To Top Of Cab | 9.55 ft in (2908 mm) |
| Ground Clearance | 1.48 ft in (450 mm) |
| Wheelbase | 10.71 ft in (3264 mm) |
| Max Height Of Boom | 8.09 ft in (2464 mm) |
| Reach Of Grapple At Ground Level | 7.77 ft in (2367 mm) |
| Tong Opening At Tips | 5.84 ft in (1778 mm) |
| Blade Width | 7.01 ft in (2134 mm) |
| Max Line Pull - Bare Drum | 33400 lb (148.58 kN) |
| Max Line Speed | 407.81 ft/min (124.3 m/min) |
| Drum Capacity At Cable Width | 314.97 ft in (96 m) |
| Grapple Capacity - Tongs Tip To Tip | 7.11 ft2 (0.66 m2) |
| Cable Width | 0.6 in (15 mm) |
| Max Blade Height | 23.51 in (597 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6BTA5.9 |
| Gross Power | 177 hp (132 kw) |
| Net Power | 159 hp (118.6 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 447 lb ft (606.1 Nm) |
| Displacement | 359 cu in (5.9 L) |
Operational
| Operating Weight | 24930 lb (11308.1 kg) |
| Fuel Capacity | 62 gal (234.7 L) |
| Cooling System Fluid Capacity | 10 gal (37.9 L) |
| Engine Oil Capacity | 3.6 gal (13.7 L) |
| Hydraulic System Fluid Capacity | 14 gal (53 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Tire Size | 28Lx26 |
Transmission
| Transmission Type | Clark R28320 |
| Number Of Forward Gears | 3 |
| Max Speed - Forward | 15.8 mph (25.5 km/h) |
Hydraulic
| Pump Type | gear type |
| Pump Flow | 36.8 gal/min (139 L/min) |
| Relief Valve Pressure | 2200 psi (15168 kPa) |
