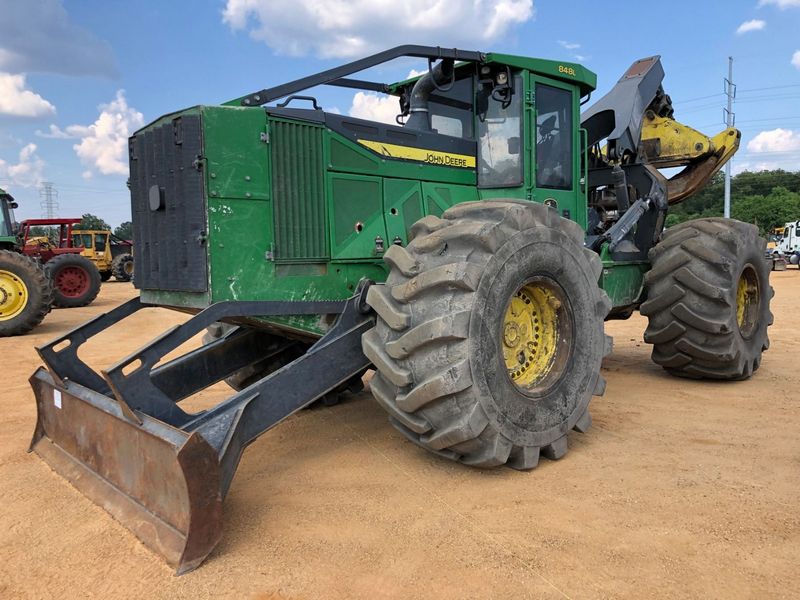

John Deere 848L
Browse All John Deere or Skidder Models
Contents:
Dimensions
| Overall Length | 333.4 in (8468.36 mm) |
| Overall Width | 140.7 in (3573.78 mm) |
| Ground Clearance | 23.78 in (604 mm) |
| Wheelbase | 156.5 in (3975 mm) |
| Tong Opening At Tips | 12.42 ft in (3785 mm) |
| Steering Articulation Angle | 45 degrees |
| Height Over Cab | 136 ft in (3454.4 mm) |
| Dozer Blade Height | 27.21 in (691 mm) |
| Dozer Blade Width | 116.63 in (2962.4 mm) |
| Enclosure Area | 17.55 ft in (1.63 m) |
| Dozer Blade - Dig Depth | 11.74 in (298 mm) |
Driveline
| Engine Model | PowerTech PSS 9.0L |
| Displacement | 549.3 cu in (9 L) |
| Engine Manufacturer | John Deere |
| Engine Output | 281.7 hp (210 kw) |
| Engine Torque | 941.2 lb ft (1276 Nm) |
| Transmission | Continuous Variable Transmission |
| Planetaries | Outboard |
| Front Axle | Outboard planetary |
| Rear Axle | Outboard planetary |
| Service Brake Type | Wet discs |
| Parking Brake Type | Wet disc |
Capacities
| Fuel Tank - Diesel | 103.6 gal (391.8 L) |
| Hydraulic Tank | 32.7 gal (123.6 L) |
| Alternator Output | 150 amps |
Description
| Standard Arch Function | Dual |
Performance
| Travel Speed | 15.6 mph (25 km/h) |
| Pump | Axial Piston |
| Oscillation Point | Front Axle |
| Oscillation Angle | 15 degrees |
| Rated Line Pull | 182.3 kN |
| Rated Line Speed | 46 ft/min (14 m/min) |
Transmission
| System Voltage | 24 V |
Weights
| Operating Weight | 49348.3 lb (22384 kg) |
