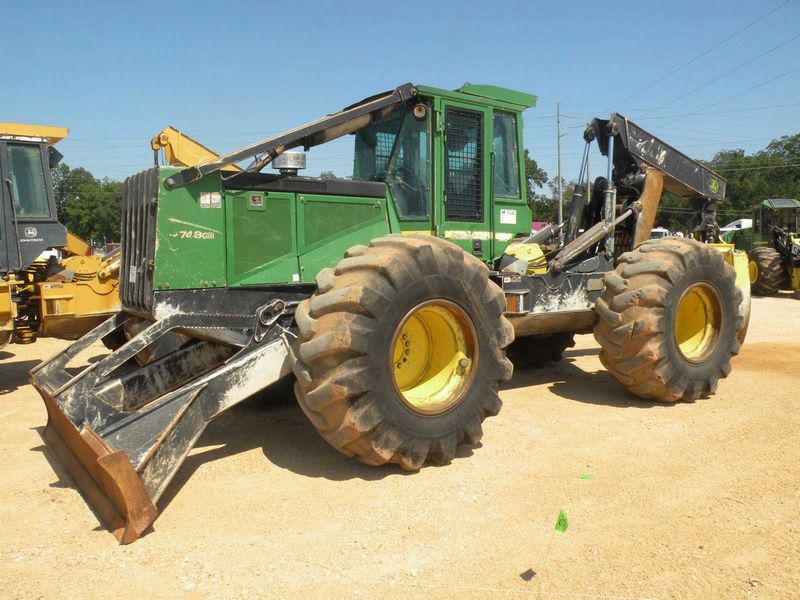

John Deere 748G
Browse All John Deere or Skidder Models
Contents:
Dimensions
| Overall Length | 25.66 in (7821 mm) |
| Overall Width | 10.6 ft in (3230 mm) |
| Height To Top Of Cab | 10.27 ft in (3130 mm) |
| Ground Clearance | 1.97 ft in (599 mm) |
| Wheelbase | 12.08 ft in (3680 mm) |
| Max Height Of Boom | 12.41 ft in (3781 mm) |
| Reach Of Grapple At Ground Level | 5.08 ft in (1547 mm) |
| Tong Opening At Tips | 10.25 in (3124 mm) |
| Height Of Grapple From Ground | 4.37 ft in (1331 mm) |
| Max Line Pull - Bare Drum | 46861 lb (208.45 kN) |
| Max Line Speed | 145 ft/min (44.2 m/min) |
| Grapple Capacity - Tongs Tip To Tip | 11.74 ft2 (1.1 m2) |
| Drum Diameter | 10 in (254 mm) |
| Drum Capacity At Cable Width | 373 ft in (113.7 m) |
| Max Blade Height | 59.06 in (1500 mm) |
| Cable Width | 0.63 in (15.8 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6076T |
| Gross Power | 173 hp (129.1 kw) |
| Net Power | 165 hp (123.1 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 532 lb ft (721.3 Nm) |
| Torque Measured @ | 1350 rpm |
| Displacement | 466 cu in (7.7 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 31489 lb (14283.2 kg) |
| Fuel Capacity | 72 gal (272.6 L) |
| Cooling System Fluid Capacity | 7.6 gal (28.4 L) |
| Engine Oil Capacity | 6.3 gal (23.7 L) |
| Front Diff Fluid Capacity | 7.6 gal (28.4 L) |
| Rear Diff Fluid Capacity | 7.6 gal (28.4 L) |
| Transmission Fluid Capacity | 7.8 gal (29.3 L) |
| Hydraulic System Fluid Capacity | 11 gal (41.6 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
| Axle Oscillation | 30 degrees |
| Steering Angle | 90 degrees |
| Tire Size | 30.5-32 |
Transmission
| Transmission Type | planetary |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 18.1 mph (29.2 km/h) |
| Max Speed - Reverse | 6.5 mph (10.5 km/h) |
Hydraulic
| Pump Type | piston |
| Pump Flow | 38 gal/min (143.9 L/min) |
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
