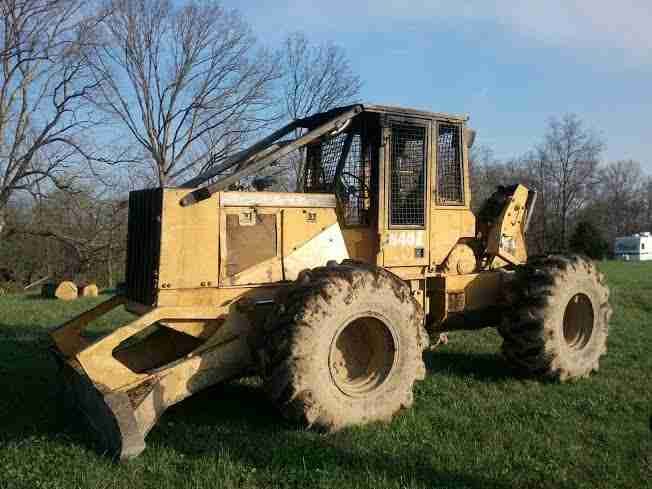

John Deere 540E
Browse All John Deere or Skidder Models
Contents:
Dimensions
| Overall Length | 19.95 ft in (6080 mm) |
| Overall Width | 9.16 ft in (2790 mm) |
| Height To Top Of Cab | 9.88 ft in (3010 mm) |
| Ground Clearance | 1.64 ft in (498 mm) |
| Wheelbase | 9.59 ft in (2920 mm) |
| Max Line Speed | 146 ft/min (44.5 m/min) |
| Max Blade Height | 47.64 in (1210 mm) |
| Drum Capacity At Cable Width | 254 ft in (77.41 m) |
| Drum Diameter | 8 in (203.2 mm) |
| Cable Width | 0.63 in (15.8 mm) |
| Max Line Pull - Bare Drum | 34308 lb (152.6 kN) |
Engine
| Engine Make | 2240 |
| Engine Model | 6059T |
| Gross Power | 121 hp (90 kw) |
| Net Power | 115 hp (86 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 391 lb ft (530 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 359 cu in (5.9 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 21900 lb (9933 kg) |
| Fuel Capacity | 41.5 gal (157 L) |
| Cooling System Fluid Capacity | 6.5 gal (24.6 L) |
| Engine Oil Capacity | 5 gal (18.9 L) |
| Front Diff Fluid Capacity | 4.5 gal (17 L) |
| Rear Diff Fluid Capacity | 4.5 gal (17 L) |
| Transmission Fluid Capacity | 7.8 gal (29.3 L) |
| Hydraulic System Fluid Capacity | 8.1 gal (30.3 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
| Steering Angle | 90 degrees |
| Tire Size | 23.1-26 10PR LS2 |
Transmission
| Transmission Type | direct-drive power shift |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 16.1 mph (25.8 km/h) |
| Max Speed - Reverse | 5.8 mph (9.3 km/h) |
Hydraulic
| Pump Type | axial piston, pressure compensated |
| Pump Flow | 27 gal/min (102 L/min) |
| Relief Valve Pressure | 3000 psi (20684 kPa) |
