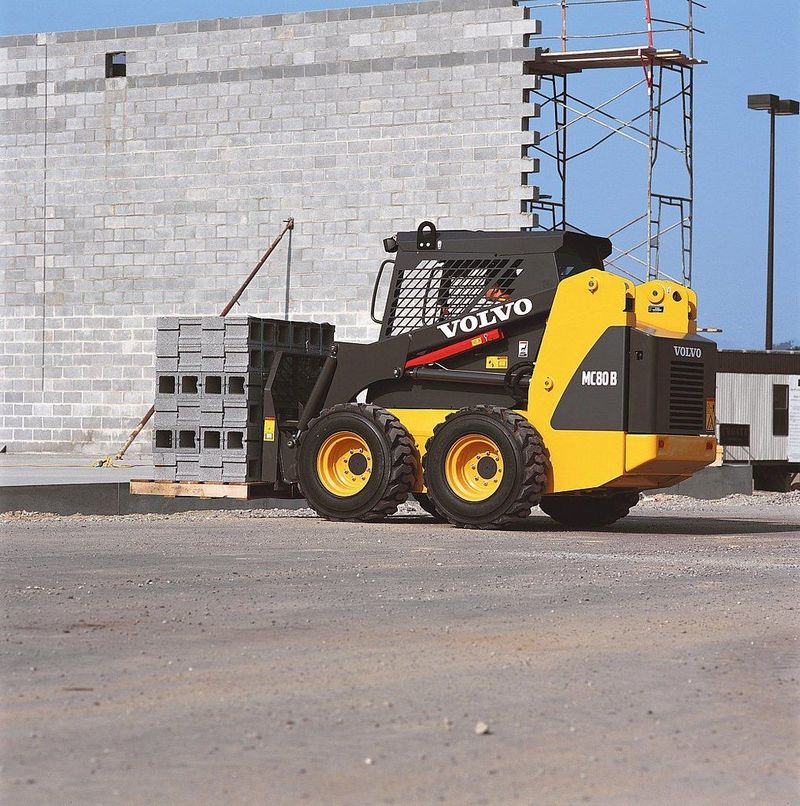

Volvo MC80B
Browse All Volvo or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.5 ft in (3504 mm) |
| Width Over Tires | 6.03 ft in (1836 mm) |
| Ground Clearance | 9.3 in (236 mm) |
| Height To Top Of Cab | 6.79 ft in (2069 mm) |
| Wheelbase | 3.34 ft in (1018 mm) |
| Length W/O Bucket | 9.44 ft in (2877 mm) |
| Clearance At Max Lift And Dump | 7.66 ft in (2332 mm) |
| Reach At Max Lift And Dump | 23.31 in (592 mm) |
| Turning Radius From Center - Machine Rear | 57.64 in (1464 mm) |
| Turning Radius From Center - Inc Bucket | 91.26 in (2318 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2244 |
| Engine Model | D3.4A |
| Gross Power | 67.3 hp (50.2 kw) |
| Net Power | 65.2 hp (48.6 kw) |
| Aspiration | Natural |
| Displacement | 201 cu in (3.3 L) |
Operational
| Operational Weight | 6824 lb (3096 kg) |
| Fuel Capacity | 23 gal (87 L) |
| Cooling System Fluid Capacity | 4.1 gal (15.5 L) |
| Engine Oil Fluid Capacity | 2.9 gal (11 L) |
| Hydraulic System Fluid Capacity | 25.7 gal (97.3 L) |
| Max Speed | 6.3 mph (10.2 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
Loader
| Operating Load Rating | 1850 lb (839 kg) |
| Tipping Angle | 3770 degrees |
| Bucket Capacity | 0.7 yd3 (0.5 m3) |
Hydraulic
| Pump Flow Capacity | 20.3 gal/min (76.7 L/min) |
| Relief Valve Pressure | 2700 psi (18615.9 kPa) |
