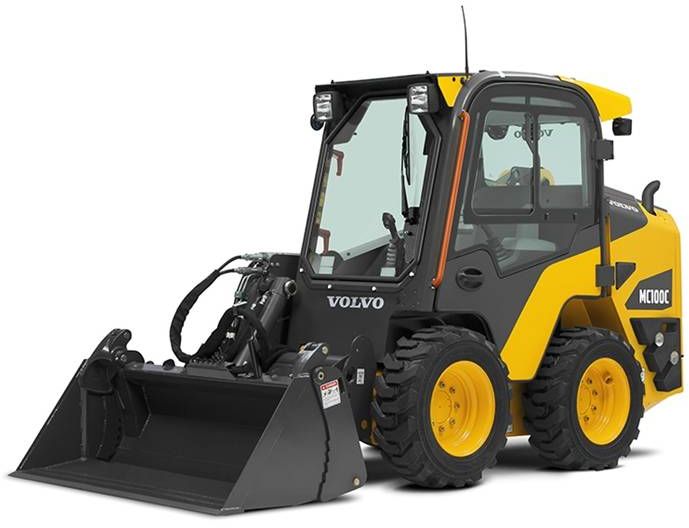

Volvo MC100C
Browse All Volvo or Skid Steer Loader Models
Contents:
Dimensions
| Ground Clearance | 8.27 in (210 mm) |
| Wheelbase | 3.52 ft in (1070 mm) |
| Dump Angle | 42 degrees |
| Dump Height | 7.42 ft in (2260 mm) |
| Dump Reach | 22.05 in (560 mm) |
| Height To Hinge Pin | 118.12 in (3000 mm) |
| Angle Of Departure | 25 degrees |
| Overall Length (L/Bucket) | 9.13 ft in (2780 mm) |
| Overall Length (W/Bucket) | 11.59 ft in (3530 mm) |
| Turning Radius | 5.42 ft in (1650 mm) |
| Turning Radius Front L/Bucket | 3.75 ft in (1140 mm) |
| Turning Radius Front W/Bucket | 6.86 ft in (2090 mm) |
| Overall Height | 6.5 ft in (1980 mm) |
| Attachment Roll Back Angle | 30 degrees |
Speeds
| Single Speed | 12 mph (19.4 km/h) |
Engine
| Starter | 2.8 hp (2.1 kw) |
| Gross Horsepower – Sae J1995 | 55 hp (41.1 kw) |
| Battery | 12 - 109 (V - Ah) |
| Number Of Cylinders | 4 |
| Engine Model | KDI 2504 TCR |
| Net Power | 54.1 hp (40.4 kw) |
| Max Torque | 221.3 lb ft (300 Nm) |
| Aspiration | Turbo |
| Fuel Type | Diesel |
| Displacement | 152.4 cu in (2.5 L) |
| Alternator | 360000 amps |
Capacities
| Hydraulic Oil Reservoir | 26 gal (98.5 L) |
| Engine Oil W/ Filter Change | 2.7 gal (10.2 L) |
| Fuel Tank | 25.9 gal (98 L) |
| Cooling System | 2.7 gal (10 L) |
| Tipping Load | 4228.5 lb (1918 kg) |
| Hydraulic System | 43.5 gal (164.7 L) |
Performance
| Rated Operating Capacity (Iso 14397) | 2114.3 lb (959 kg) |
| Lift Arm Path | Radial |
| Curl | 1.4 sec |
| Dump | 1.8 sec |
| Lower (Power Down) | 1.8 sec |
| Raise (Lifting) | 3.2 sec |
Loader
| Standard Hydraulic Pump Output | 18.5 gal/min (70 L/min) |
| High Flow Pump Output | 30.4 gal/min (115 L/min) |
| System Pressure | 3336 psi (23000.9 kPa) |
Weights
| Weight | 7054.8 lb (3200 kg) |
Loader
| Bucket Width | 66 in (1676 mm) |
Bucket
| General Purpose Bucket Width | 6.1 ft in (1829 mm) |
| Multi Purpose Bucket Width | 6.1 ft in (1829 mm) |
| Landscape Bucket Width | 6.1 ft in (1829 mm) |
| Breakout Force, Lift | 4131.5 lb (1874 kg) |
| Breakout Force, Curl | 3964 lb (1798 kg) |
| General Purpose Bucket Length | 2.7 ft in (800 mm) |
| Landscape Bucket Length | 3.2 ft in (953 mm) |
| Multi Purpose Bucket Length | 3.2 ft in (953 mm) |
| General Purpose Bucket Height | 1.8 ft in (521 mm) |
| Landscape Bucket Height | 1.8 ft in (521 mm) |
| Multi Purpose Bucket Height | 2.3 ft in (701 mm) |
| Landscape Bucket Weight | 0.4 in2 (232 mm2) |
| General Purpose Bucket Weight | 474 lb (215 kg) |
| Multi Purpose Bucket Weight | 776.1 lb (352 kg) |
| Multi Purpose Bucket Heaped Cap | 0.8 yd3 (0.6 m3) |
| Landscape Bucket Heaped Cap | 0.8 yd3 (0.6 m3) |
| General Purpose Bucket Heaped Cap | 0.6 yd3 (0.5 m3) |
