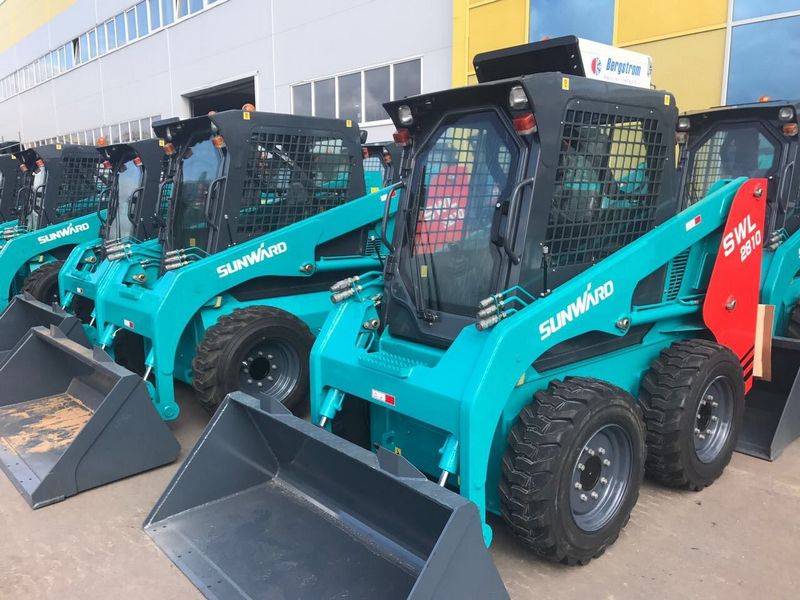

Sunward SWL2810
Browse All Sunward or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.7 ft in (3261 mm) |
| Width Over Tires | 5.25 ft in (1600 mm) |
| Ground Clearance | 7.49 in (190 mm) |
| Height To Top Of Cab | 6.63 ft in (2018 mm) |
| Wheelbase | 3.24 ft in (987 mm) |
| Length W/O Bucket | 8.13 ft in (2475 mm) |
| Clearance At Max Lift And Dump | 7.62 ft in (2320 mm) |
| Reach At Max Lift And Dump | 18.71 in (475 mm) |
| Turning Radius From Center - Machine Rear | 60.4 in (1534 mm) |
| Turning Radius From Center - Inc Bucket | 76.93 in (1954 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV84T |
| Net Power | 53.6 hp (39.9 kw) |
| Power Measured @ | 2800 rpm |
Operational
| Operational Weight | 6128.9 lb (2780 kg) |
| Fuel Capacity | 18.5 gal (70 L) |
| Cooling System Fluid Capacity | 2.1 gal (7.7 L) |
| Engine Oil Fluid Capacity | 2 gal (7.4 L) |
| Max Speed | 8.5 mph (13.6 km/h) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Chain Box Fluid Capacity - Each Side | 8 gal (30 L) |
| Tire Size | 10-16.5 |
Loader
| Breakout Force | 4188.8 lb (1900 kg) |
| Operating Load Rating | 1598.4 lb (725 kg) |
| Tipping Angle | 3196.8 degrees |
| Bucket Capacity | 0.6 yd3 (0.4 m3) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 27.4 gal/min (103.6 L/min) |
| Relief Valve Pressure | 3625 psi (24993.5 kPa) |
