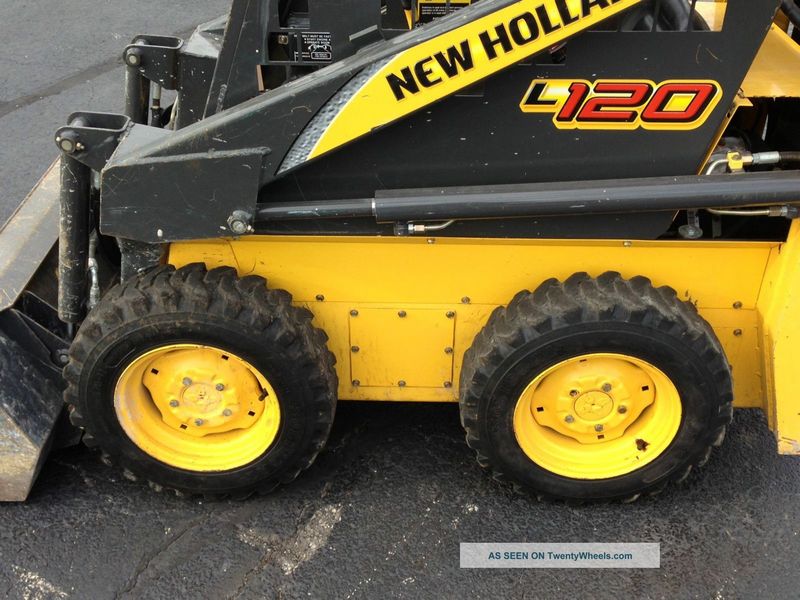

New Holland L120
Browse All New Holland or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 7.93 ft in (2417.07 mm) |
| Width Over Tires | 2.93 ft in (893.07 mm) |
| Ground Clearance | 6.8 in (172.72 mm) |
| Height To Top Of Cab | 5.78 ft in (1761.75 mm) |
| Wheelbase | 2.44 ft in (743.72 mm) |
| Clearance At Max Lift And Dump | 7.79 ft in (2374.4 mm) |
| Reach At Max Lift And Dump | 5.14 in (130.56 mm) |
| Turning Radius From Center - Machine Rear | 71 in (1803.4 mm) |
| Turning Radius From Center - Inc Bucket | 48 in (1219.2 mm) |
Engine
| Number Of Cylinders | 2 |
| Engine Make | 2355 |
| Engine Model | CH18 |
| Gross Power | 18 hp (13.5 kw) |
| Power Measured @ | 3600 rpm |
| Displacement | 38.1 cu in (0.7 L) |
Operational
| Operational Weight | 2050 lb (929.9 kg) |
| Fuel Capacity | 6 gal (22.8 L) |
| Engine Oil Fluid Capacity | 0.9 gal (3.1 L) |
| Max Speed | 5.8 mph (9.3 km/h) |
| Hydraulic System Fluid Capacity | 9.1 gal (34.1 L) |
| Tire Size | 23X8.50-12 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 20 amps |
Loader
| Breakout Force | 1408.8 lb (639 kg) |
| Operating Load Rating | 600 lb (272.2 kg) |
| Tipping Angle | 1200 degrees |
| Bucket Capacity | 0.2 yd3 (0.2 m3) |
Hydraulic
| Pump Type | Gear type |
| Pump Flow Capacity | 8 gal/min (30.2 L/min) |
| Relief Valve Pressure | 1600 psi (11025 kPa) |
