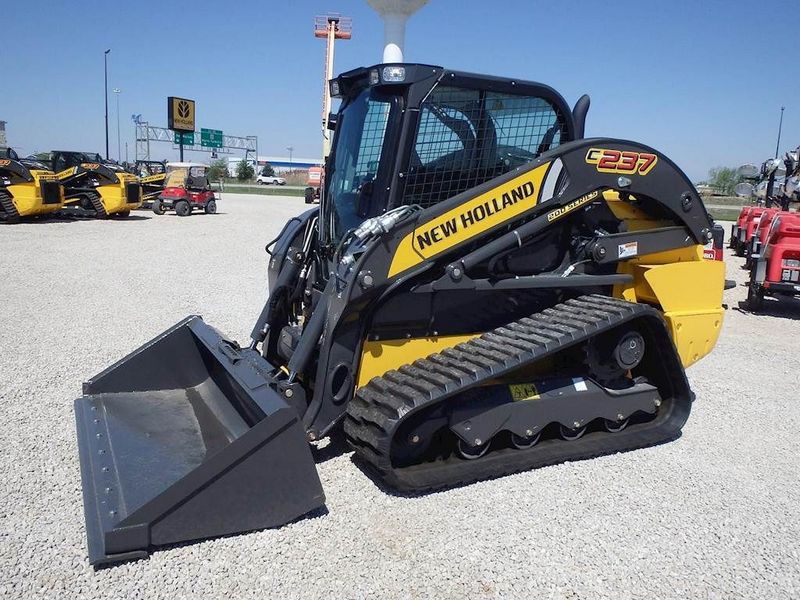

New Holland C237
Browse All New Holland or Skid Steer Loader Models
Contents:
Dimensions
| Ground Clearance | 9.5 in (241.3 mm) |
| Bottom Of Level Bucket, Fully Raised | 124.8 in (3169.92 mm) |
| Bucket Hinge Pin | 131.6 in (3342.64 mm) |
| Clearance Circle Rear | 67 in (1701.8 mm) |
| Clearance Circle Without Bucke | 58.5 in (1485.9 mm) |
| Dump Reach - General Purpose | 35.1 in (891.54 mm) |
| Ground Pressure | 4.2 psi (28.96 kPa) |
| Overall Width | 76 in (1930.4 mm) |
| Rollback, Bucket At Full Height | 86 degrees |
| Rollback, Bucket On Ground | 34.21 degrees |
| Top Of Rops | 80.41 in (2042.16 mm) |
| Angle Of Departure | 32 degrees |
| Track On Ground | 64.5 in (1638.3 mm) |
Engine
| Horsepower, Net-Sae J1349 | 68 hp (50.8 kw) |
| Fuel Injection | HPCR Direct |
| Horsepower Per Sae J1349 Gross | 74 hp (55.2 kw) |
| Engine Model | F5BFL463A*F001 |
| Max Torque | 232 lb ft (314.6 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 207.5 cu in (3.4 L) |
| Bore | 3.9 in (99 mm) |
| Stroke | 4.4 in (110 mm) |
Performance
| Rated Operating Load, 35% Tip | 2597.1 lb (1178 kg) |
| Tipping Load | 7401 lb (3357 kg) |
| Operating Weight | 9149.2 lb (4150 kg) |
| Breakout Force, Bucket Cylinder | 8767.6 lb (39 kN) |
| Breakout Force, Lift Cylinder | 6294.7 lb (28 kN) |
| Rated Operating Load, 50% Tip | 3699.4 lb (1678 kg) |
Power Train
| Travel Speed, Low Range | 5.1 mph (8.2 km/h) |
| Travel Speed, High Range | 8.1 mph (12.9 km/h) |
Hydraulic System
| Optional High Flow | 37.6 gal/min (142.4 L/min) |
| Relief Valve Pressure | 3046 psi (21001.5 kPa) |
| Pump Flow | 24.2 gal/min (91.7 L/min) |
