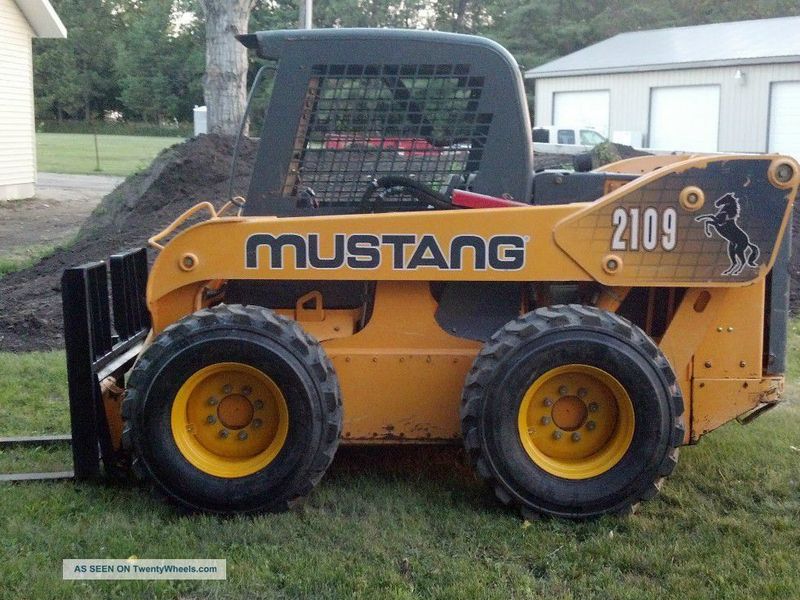

Mustang 2109
Browse All Mustang or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 13.42 ft in (4089 mm) |
| Width Over Tires | 6.75 ft in (2057 mm) |
| Ground Clearance | 9.1 in (231 mm) |
| Height To Top Of Cab | 11.84 ft in (3607 mm) |
| Wheelbase | 4.59 ft in (1397 mm) |
| Length W/O Bucket | 10.17 ft in (3099 mm) |
| Clearance At Max Lift And Dump | 8.92 ft in (2718 mm) |
| Reach At Max Lift And Dump | 38.21 in (970 mm) |
| Turning Radius From Center - Machine Rear | 80.5 in (2045 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | B4.5T-99C |
| Net Power | 99 hp (74 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 275 cu in (4.5 L) |
Operational
| Operational Weight | 10520 lb (4772 kg) |
| Fuel Capacity | 30.5 gal (115.4 L) |
| Hydraulic System Fluid Capacity | 15 gal (58 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Operating Speed | 12.5 mph (20 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 675 amps |
Loader
| Breakout Force | 8340 lb (37.1 kg) |
| Operating Load Rating | 3850 lb (1746 kg) |
| Tipping Angle | 7700 degrees |
| Bucket Capacity | 1.1 yd3 (0.8 m3) |
Hydraulic
| Pump Flow Capacity | 41 gal/min (155 L/min) |
| Relief Valve Pressure | 3300 psi (22752.7 kPa) |
