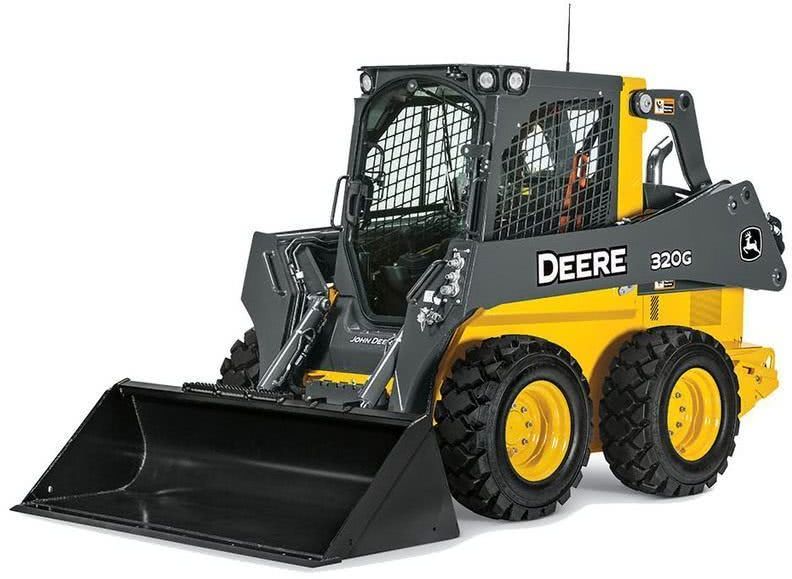

John Deere 320G_ Skid Steer _JD
Browse All John Deere or Skid Steer Loader Models
Contents:
Dimensions
| Ground Clearance | 9.45 in (240 mm) |
| Wheelbase | 3.68 ft in (1120 mm) |
| Height To Hinge Pin | 122.05 in (3100 mm) |
| Length - No Bucket | 112.21 in (2850 mm) |
| Length - With Bucket | 136.23 in (3460 mm) |
| Overall Height | 6.76 ft in (2060 mm) |
| Rear Departure Angle | 28 |
| Reach - Max Dump Height | 29.14 in (740 mm) |
| Rollback - Ground Level | 33 - |
| Dump Angle | 43 |
| Width - No Bucket | 66.93 in (1700 mm) |
| Dump Height - Maximum | 97.64 in (2480 mm) |
Driveline
| Engine Model | 4TNV98C |
| Displacement | 202.6 cu in (3.4 L) |
| Engine Manufacturer | Yanmar |
| Emission Rating | Tier 4 |
| Rated Engine Speed | 2500 rpm |
| Sae Net Power | 66 hp (49.3 kw) |
| Sae Gross Power | 69 hp (51.5 kw) |
| Max. Gross Torque | 241 (178) |
| Drive Chain Rating [Ansi] | 80 - HD |
| Tire Size - Standard | 12 x 16.5 - 12PR SKS |
| Aspiration | Naturally Aspirated |
Capacities
| Fuel Tank - Diesel | 20.9 gal (79 L) |
Description
| Lift Geometry | Vertical |
| Fleet Management | Yes |
| Precision Guidance | No |
| Proximity Guidance | No |
Performance
| Rated Operating Capacity - Optional Counterweight | 2352.4 lb (1067 kg) |
| Tipping Capacity (Sae) | 4385 lb (1989 kg) |
| Axle Torque - Maximum | 6771 (4994) |
| Speed - Maximum | 6.9 mph (11.2 km/h) |
| Breakout - Lift | 3709.4 lb (16.5 kN) |
| Breakout - Bucket | 5980 lb (26.6 kN) |
| Hydraulic Power | 38.6 hp (28.8 kw) |
| Pump Output | 20.7 gal/min (78 L/min) |
| Pump Flow -Option | 29.6 gal/min (112 L/min) |
| System Pressure | 3250 psi (22408 kPa) |
| Speed - Maximum Option | 11.1 mph (17.9 km/h) |
| Rated Operating Capacity | 2191.4 lb (994 kg) |
| Hydraulic Power - Option, Kw (Hp) | 55.5 hp (41.4 kw) |
Weights
| Operating Weight | 15763.1 lb (7150 kg) |
