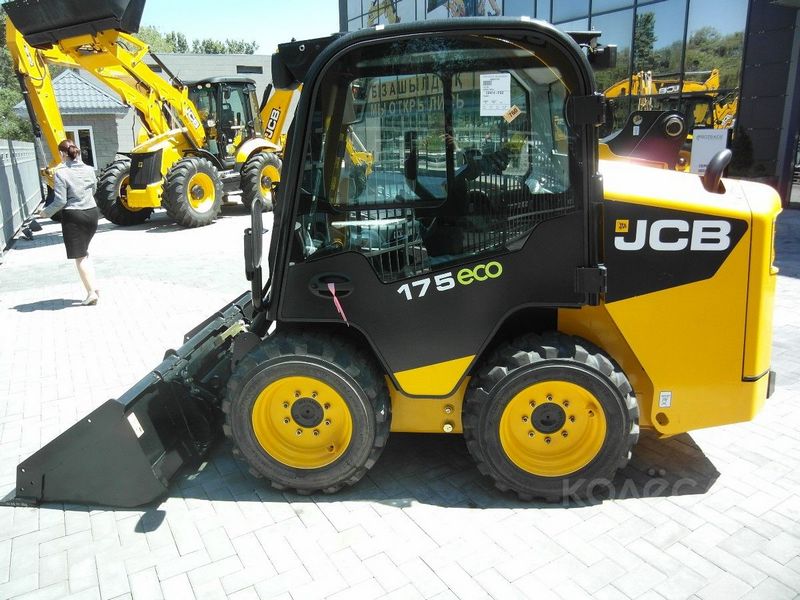

JCB 175
Browse All JCB or Skid Steer Loader Models
Contents:
Dimensions
| Ground Clearance | 8.27 in (210 mm) |
| Wheelbase | 3.52 ft in (1070 mm) |
| Dig Depth | 393.71 in (10000 mm) |
| Dump Angle | 42 degrees |
| Dump Height | 7.42 ft in (2260 mm) |
| Loadover Height | 9317.59 ft in (2840 m) |
| Max. Reach @ Full Height | 3.97 ft in (1.21 m) |
| Overall Height | 6.5 ft in (1980 mm) |
| Overall Length | 137.41 in (3490 mm) |
| Pin Height | 9.91 ft in (3.02 m) |
| Quick Hitch Turning Radius | 3.75 ft in (1.14 m) |
| Reach @ Ground Level | 3.55 ft in (1.08 m) |
| Rear Chassis Turning Radius | 5.42 ft in (1.65 m) |
| Rollback - Ground Level | 30 degrees |
| Angle Of Departure | 25 degrees |
| Width Over Tyres | 59.85 in (1520 mm) |
| Bucket Corner Turning Radius | 6.86 ft in (2.09 m) |
Tyres
| Standard | 10 x 16.5 - 8 PR Xtra Wall Off Road |
Engine
| Emissions Certification | EPA-T4F (EU St3B) |
| Fuel | Diesel |
| Starter Motor | 2 KW |
| Battery | 12 V |
| Hydraulically Driven Cooling Fan | Yes |
| Engine Oil Service Interval | 500 hours |
| Engine Model | Kohler KDI 1903TCR/26B |
| Gross Power | 56 hp (41.8 kw) |
| Cooling System | Diesel |
| Power Measured @ | 2400 rpm |
| Max Torque | 166 lb ft (225 Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Turbo |
| Displacement | 1860 cu in (30.5 L) |
| Alternator | 100 amps |
Capacities
| Fuel Tank - Diesel | 24.4 gal (92 L) |
| Hydraulic System | 11.5 gal (43.5 L) |
| Engine Oil | 2 gal (7.4 L) |
| Engine Coolant | 2.7 gal (10 L) |
Operational
| Operational Weight | 6818.9 lb (3093 kg) |
Transmission
| Model | Single Speed |
| Travel Speed | 7.5 mph (12 km/h) |
Loader
| Loader Lift Capacity With Bucket | 3461.3 lb (1570 kg) |
| Tipping Load - No Counterweight | 3505.4 lb (1590 kg) |
| Breakout Force | 4717.9 lb (2140 kg) |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Bucket Width | 66.2 in (1680 mm) |
Hydraulic
| Pump Flow Capacity | 18.5 gal/min (70 L/min) |
| Relief Valve Pressure | 3335 psi (22994 kPa) |
