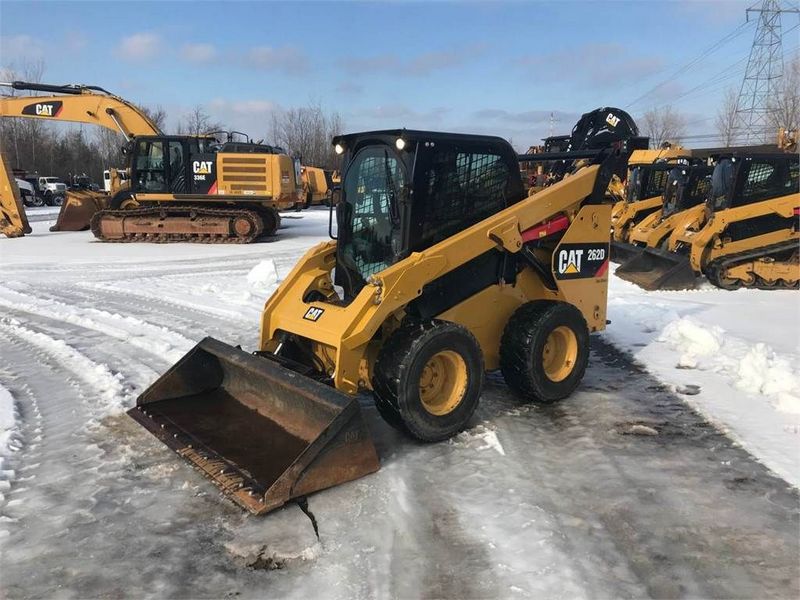

Caterpillar 262
Browse All Caterpillar or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.87 ft in (3616 mm) |
| Width Over Tires | 6.01 ft in (1829 mm) |
| Ground Clearance | 9 in (228.6 mm) |
| Height To Top Of Cab | 6.83 ft in (2080 mm) |
| Wheelbase | 4.03 ft in (1228 mm) |
| Length W/O Bucket | 9.55 ft in (2910 mm) |
| Clearance At Max Lift And Dump | 7.99 ft in (2435 mm) |
| Reach At Max Lift And Dump | 30.71 in (780 mm) |
| Wheel Base | 4.03 ft in (0.11 m) |
| Bucket Pin Height - Carry Position | 9.6 in (243.84 mm) |
| Clearance At Maximum Lift And Dump | 98.2 in (2494.29 mm) |
| Length - Without Bucket | 114.3 in (2903.22 mm) |
| Bucket Pin Height - Maximum Lift | 10.65 ft in (0.28 m) |
| Maximum Overall Height | 161 in (4089.4 mm) |
| Height - Top Of Cab | 6.89 ft in (0.18 m) |
| Bumper Overhang - Rear Axle | 41 in (1041.41 mm) |
| Reach - Maximum Lift/Dump | 32.5 in (825.5 mm) |
| Turning Radius From Center - Inc Bucket | 89.14 in (2264 mm) |
| Length - With Bucket On Ground | 142.4 in (3616.96 mm) |
| Vehicle Width Over Tires | 72 in (1828.8 mm) |
Operating Specifications
| Breakout Force - Tilt Cylinder | 5212 lb (2364.13 kg) |
| Breakout Force - Lift Cylinder | 5020 lb (2277.04 kg) |
| Rated Operating Capacity | 2500 lb (1133.99 kg) |
| Rated Operating Capacity With Optional Counterweight | 2550 lb (1156.67 kg) |
| Tipping Load | 5000 lb (2267.97 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3034T |
| Gross Power | 80 hp (59.7 kw) |
| Net Power | 74 hp (55.2 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 183 cu in (3 L) |
| Bore | 3.9 in (97.1 mm) |
| Stroke | 4 in (100.1 mm) |
| Engine Model | Cat 3034C |
| Net Flywheel Power | 74 hp (55.2 kw) |
Operational
| Operational Weight | 3552 lb (1611.2 kg) |
| Fuel Capacity | 23.8 gal (90 L) |
| Max Speed | 7.6 mph (12.1 km/h) |
| Hydraulic System Fluid Capacity | 14.1 gal (53 L) |
| Operating Speed | 7.6 mph (12.1 km/h) |
Loader
| Operating Load Rating | 2500 lb (1134 kg) |
| Tipping Angle | 4779.6 degrees |
| Bucket Capacity | 0.6 yd3 (0.5 m3) |
Weights
| Operating Weight | 7655 lb (3472.3 kg) |
Hydraulic
| Pump Flow Capacity | 22 gal/min (83 L/min) |
Hydraulic System
| Loader Hydraulic Pressure | 3300 psi |
| Loader Hydraulic Flow | 22 gal/min |
| Hydraulic Flow | Standard flow |
Service Refill Capacities
| Cooling System | 2.6 gal (9.9 L) |
| Fuel Tank | 23.8 gal (90.1 L) |
| Hydraulic Tank | 9.2 gal (34.9 L) |
| Engine Crankcase | 1.8 gal (6.9 L) |
| Hydraulic System | 14 gal (53 L) |
| Chain Box - Each Side | 2.1 gal (8 L) |
Cab
| Rops | SAE J1040 MAY94 and ISO3471:1994 |
| Fops | SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I |
| Fops Level Ii | SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional) |
