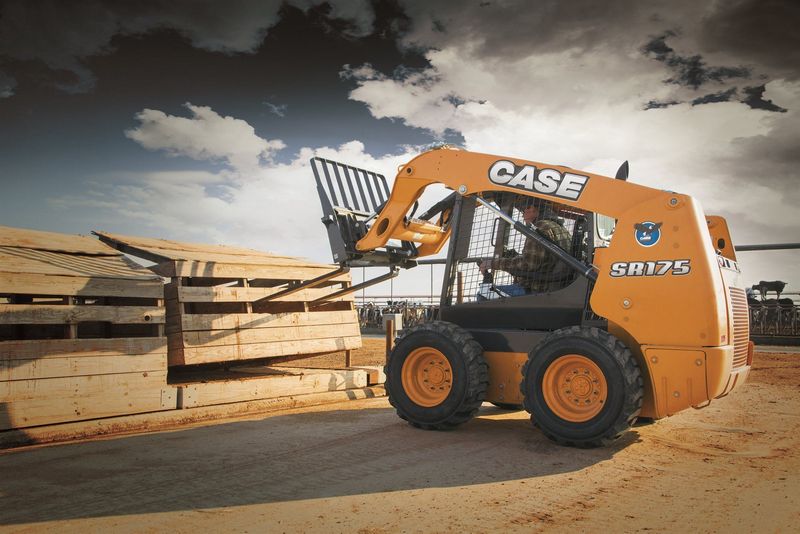

Case SR175
Browse All Case or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.83 ft in (3300 mm) |
| Width Over Tires | 5.35 ft in (1630 mm) |
| Ground Clearance | 7 in (177.8 mm) |
| Height To Top Of Cab | 6.47 ft in (1970 mm) |
| Wheelbase | 3.71 ft in (1130 mm) |
| Length W/O Bucket | 8.83 ft in (2690 mm) |
| Clearance At Max Lift And Dump | 8.11 ft in (2470 mm) |
| Reach At Max Lift And Dump | 21.3 in (541.02 mm) |
| Turning Radius From Center - Machine Rear | 62.9 in (1597.66 mm) |
| Turning Radius From Center - Inc Bucket | 78.41 in (1991.36 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | ISM N844T/M3 |
| Gross Power | 60 hp (44.8 kw) |
| Net Power | 57 hp (42.6 kw) |
| Power Measured @ | 2900 rpm |
| Max Torque | 126 lb ft (170.9 Nm) |
| Torque Measured @ | 1800 rpm |
| Aspiration | Turbocharged |
| Displacement | 135 cu in (2.3 L) |
Operational
| Operational Weight | 6200 lb (2812.3 kg) |
| Fuel Capacity | 20 gal (75.8 L) |
| Engine Oil Fluid Capacity | 2.3 gal (8.5 L) |
| Max Speed | 11.5 mph (18.6 km/h) |
| Hydraulic System Fluid Capacity | 5.3 gal (20 L) |
| Chain Box Fluid Capacity - Each Side | 1.8 gal (6.7 L) |
| Operating Speed | 7.4 mph (12 km/h) |
| Tire Size | 10 x 16.5 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Loader
| Operating Load Rating | 1750 lb (793.8 kg) |
| Tipping Angle | 3500 degrees |
| Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Bucket Width | 66 in (1676.4 mm) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 9.6 gal/min (36 L/min) |
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
