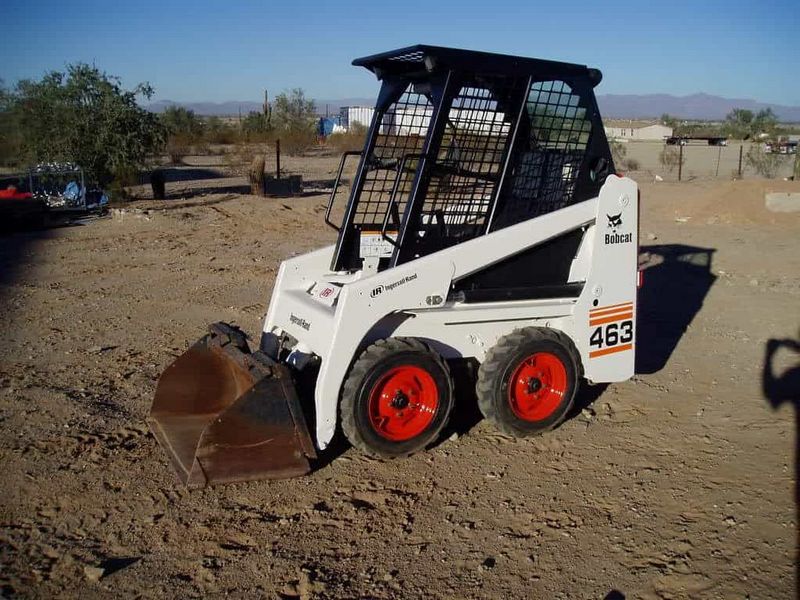

Bobcat 463
Browse All Bobcat or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 8.4 ft in (2560 mm) |
| Width Over Tires | 2.96 ft in (900 mm) |
| Ground Clearance | 5.52 in (140 mm) |
| Height To Top Of Cab | 5.96 ft in (1814 mm) |
| Wheelbase | 2.37 ft in (722 mm) |
| Length W/O Bucket | 6.3 ft in (1918 mm) |
| Clearance At Max Lift And Dump | 6.18 ft in (1882 mm) |
| Reach At Max Lift And Dump | 18.5 in (469.9 mm) |
| Turning Radius From Center - Machine Rear | 61.3 in (1557.02 mm) |
Engine
| Engine Model | D1005- E 2B-BC -3 |
| Gross Power | 22.5 hp (16.8 kw) |
Operational
| Operational Weight | 2708 lb (1228.4 kg) |
| Fuel Capacity | 6.5 gal (24.6 L) |
| Max Speed | 6.5 mph (10.5 km/h) |
Loader
| Operating Load Rating | 700 lb (317.6 kg) |
| Tipping Angle | 1405 degrees |
Hydraulic
| Pump Flow Capacity | 10 gal/min (37.9 L/min) |
