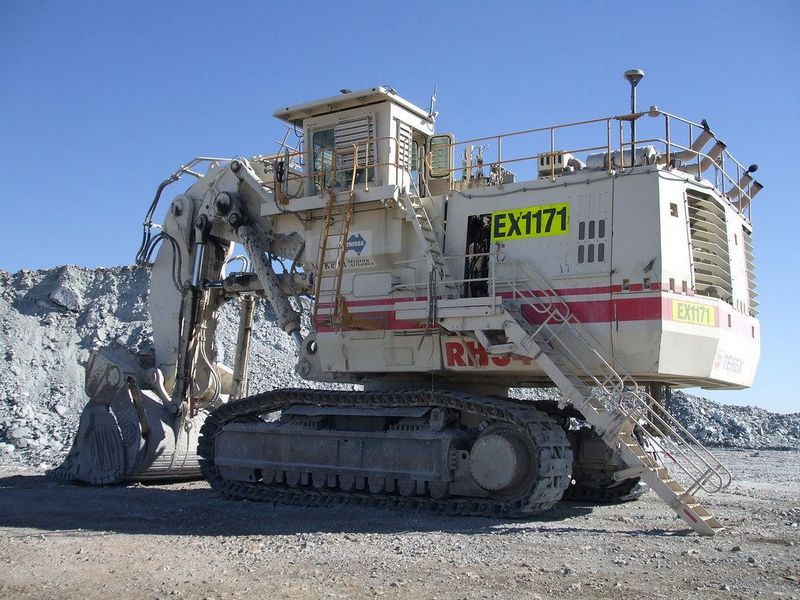

Terex RH340
Contents:
Backhoe Boom / Stick 1
| Max Dig Depth | 29.2 ft in (8900 mm) |
| Max Cutting Height | 52.17 ft in (15900 mm) |
| Backhoe Boom / Stick | boom 34'5" (10500mm) w/ stick 16'5" (5000mm) |
Dimensions
| Width Over Tracks | 22.97 ft in (7000 mm) |
| Length Of Track On Ground | 23.27 ft in (7090 mm) |
| Height To Top Of Cab | 28.78 ft in (8770 mm) |
| Ground Clearance | 3.68 in (1120 mm) |
| Length Of Tracks | 30.29 ft in (9230 mm) |
| Height Of Tracks | 8.21 ft in (2500 mm) |
| Upper Structure Ground Clearance | 9.16 ft in (2790 mm) |
Loading Shovel
| Max Dig Reach | 53.48 ft in (16300 mm) |
| Max Dump Height | 37.73 ft in (11500 mm) |
| Max Cutting Height | 50.53 ft in (15400 mm) |
| Max Dig Depth | 8.54 ft in (2600 mm) |
| Loading Shovel | boom 26'2" (8000mm) w/ stick 16'9" (5100mm) |
Undercarriage
| Loading Shovel Shoe Width | 55.12 in (1400 mm) |
| Track Gauge | 18.38 ft in (5600 mm) |
| Loading Shovel Ground Pressure | 30.7 psi (211.67 kPa) |
| Max Travel Speed | 1.25 mph (2 km/h) |
| Number Of Lower Rollers | 7 |
| Number Of Track Shoes Per Side | 42 |
| Number Of Upper Rollers | 2 |
| Backhoe Shoe Width 1 | 55.12 in (1400 mm) |
| Backhoe Ground Pressure - Shoe 1 | 30.9 psi (213.05 kPa) |
| Backhoe Operating Weight - Shoe 1 | 1205928.65 lb (547000 kg) |
| Loading Shovel Operating Weight | 1216951.76 lb (552000 kg) |
Engine
| Number Of Cylinders | 24 |
| Engine Make | 2347 |
| Engine Model | 2 x K 1500-E |
| Net Power | 2520 hp (1879.2 kw) |
| Gross Power | 2520 hp (1879.2 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 2300 cu in (37.7 L) |
| Aspiration | Turbocharged and aftercooled |
Operational
| Fuel Capacity | 2826.7 gal (10700 L) |
| Hydraulic System Fluid Capacity | 1611.5 gal (6100 L) |
| Swing Speed | 3.9 rpm |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 350 amps |
Buckets
| Reference Bucket Capacity | 36.7 yd3 (28 m3) |
| Minimum Bucket Capacity | 36.7 yd3 (28 m3) |
| Maximum Bucket Capacity | 44.5 yd3 (34 m3) |
