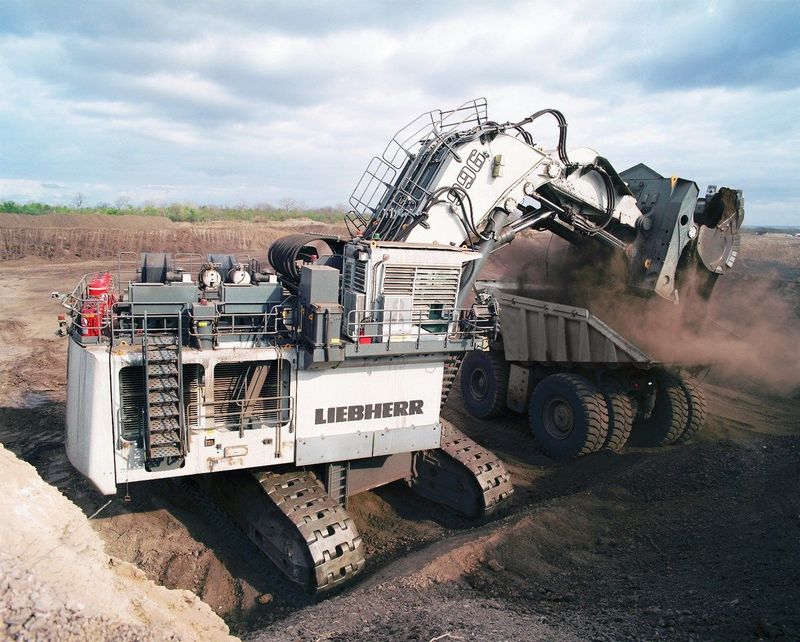

Liebherr R996
Contents:
Backhoe Boom / Stick 1
| Overall Length | 74.15 ft in (22600 mm) |
| Max Dig Depth | 28.88 ft in (8800 mm) |
| Height To Top Of Boom | 31.99 ft in (9750 mm) |
| Max Cutting Height | 54.47 ft in (16600 mm) |
| Max Dump Height | 34.45 ft in (10500 mm) |
| Backhoe Boom / Stick | 11.75m boom / 5m stick |
| Max Reach On Ground | 65.62 ft in (20000 mm) |
Dimensions
| Width Over Tracks | 25.1 ft in (7650 mm) |
| Length Of Track On Ground | 24.61 ft in (7500 mm) |
| Height To Top Of Cab | 29.76 ft in (9070 mm) |
| Tail Swing Radius | 25.58 ft in (7795 mm) |
| Ground Clearance | 4.71 in (1435 mm) |
| Upper Structure Ground Clearance | 9.34 ft in (2845 mm) |
| Length Of Tracks | 32.81 ft in (10000 mm) |
| Height Of Tracks | 9.8 ft in (2985 mm) |
Loading Shovel
| Max Dig Reach | 51.19 ft in (15600 mm) |
| Max Dump Height | 46.92 ft in (14300 mm) |
| Height To Top Of Boom - Shovel | 27.89 ft in (8500 mm) |
| Overall Length - Shovel | 76.94 ft in (23450 mm) |
| Arm Crowd Force | 516980 lb ft (700930.79 Nm) |
| Loading Shovel | 8m boom / 5m stick |
Undercarriage
| Loading Shovel Shoe Width | 55.12 in (1400 mm) |
| Track Gauge | 19.63 ft in (5983.23 mm) |
| Number Of Lower Rollers | 7 |
| Number Of Upper Rollers | 3 |
| Loading Shovel Operating Weight | 1472687.82 lb (668000 kg) |
| Loading Shovel Ground Pressure | 40.82 psi (281.45 kPa) |
| Backhoe Shoe Width 1 | 55.12 in (1400 mm) |
| Backhoe Operating Weight - Shoe 1 | 1452846.39 lb (659000 kg) |
| Backhoe Ground Pressure - Shoe 1 | 39.97 psi (275.59 kPa) |
| Max Travel Speed | 1.37 mph (2.21 km/h) |
Engine
| Number Of Cylinders | 16 |
| Engine Make | 2347 |
| Engine Model | 2 x K 1800 E |
| Net Power | 3000 hp (2237.1 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 3069.5 cu in (50.3 L) |
| Aspiration | turbo-charged after-cooled |
Operational
| Fuel Capacity | 3434.3 gal (13000 L) |
| Hydraulic System Fluid Capacity | 2166.3 gal (8200 L) |
| Swing Speed | 3.5 rpm |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 150 amps |
Buckets
| Reference Bucket Capacity | 44.4 yd3 (34 m3) |
| Minimum Bucket Capacity | 37.9 yd3 (29 m3) |
| Maximum Bucket Capacity | 44.4 yd3 (34 m3) |
