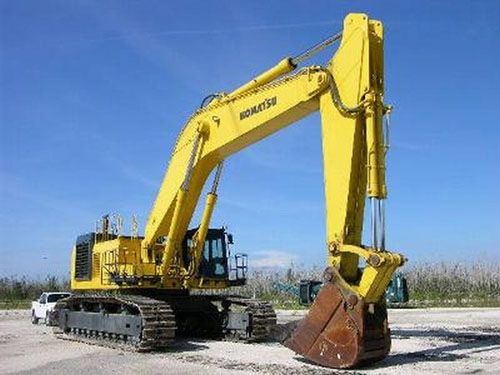

Komatsu PC1100-6
Contents:
Dimensions
| Width Over Tracks | 15.1 ft in (4600 mm) |
| Length Of Track On Ground | 16.39 ft in (4995 mm) |
| Height To Top Of Cab | 12.65 ft in (3855 mm) |
| Tail Swing Radius | 15.98 ft in (4870 mm) |
| Ground Clearance | 38.98 in (990 mm) |
| Upper Structure Ground Clearance | 5.88 ft in (1790 mm) |
| Length Of Tracks | 21.08 ft in (6425 mm) |
Loading Shovel
| Max Dig Reach | 37.41 ft in (11400 mm) |
| Max Dump Height | 28.84 ft in (8790 mm) |
| Max Cutting Height | 40.69 ft in (12400 mm) |
| Max Dig Depth | 11.98 ft in (3650 mm) |
| Height To Top Of Boom - Shovel | 19.39 ft in (5910 mm) |
| Overall Length - Shovel | 36.52 ft in (11130 mm) |
Undercarriage
| Loading Shovel Shoe Width | 27.56 in (700 mm) |
| Track Gauge | 12.8 ft in (3900 mm) |
| Max Travel Speed | 2 mph (3.22 km/h) |
| Loading Shovel Operating Weight | 238100 lb (108000.36 kg) |
| Loading Shovel Ground Pressure | 20.11 psi (138.59 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D170E |
| Net Power | 611 hp (455.7 kw) |
| Power Measured @ | 1800 rpm |
| Aspiration | Turbocharged |
| Displacement | 1413 cu in (23.2 L) |
Operational
| Fuel Capacity | 359.3 gal (1360 L) |
| Hydraulic System Fluid Capacity | 177 gal (670 L) |
| Swing Speed | 5.8 rpm |
Buckets
| Reference Bucket Capacity | 6.6 yd3 (5 m3) |
| Minimum Bucket Capacity | 4.5 yd3 (3.4 m3) |
| Maximum Bucket Capacity | 8.6 yd3 (6.5 m3) |
