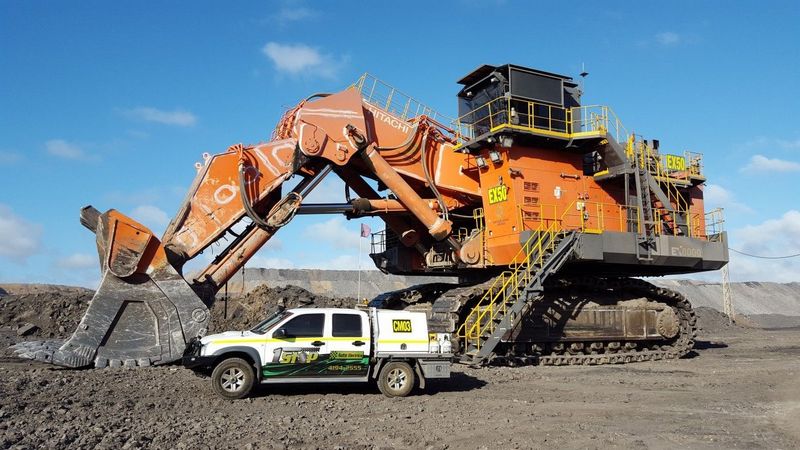

Hitachi EX8000-6
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 67.26 ft in (20500 mm) |
| Arm Crowding Force | 645201.62 lb (2870 kN) |
| Boom/Stick Option (Hex) 1 | Boom-40.0 m3 52 cu. yd. |
| Bucket Digging Force | 501323.9 lb (2230 kN) |
| Digging Distance | 23.63 ft in (7200 mm) |
| Level Crowding Distance | 18.38 ft in (5600 mm) |
| Max Bucket Opening Width | 9.19 ft in (2800 mm) |
| Max Digging Depth | 13.46 ft in (4100 mm) |
| Max Digging Reach | 60.7 ft in (18500 mm) |
| Max.Dumping Height | 45.28 ft in (13800 mm) |
| Min Level Crowding Distance | 36.42 ft in (11100 mm) |
| Working Radius At Max Dumping Height | 35.77 ft in (10900 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 62.34 ft in (19000 mm) |
| Min Level Crowding Distance | 28.22 ft in (8600 mm) |
| Arm Crowding Force-Iso | 397911.8 lb (1770 kN) |
| Arm Crowding Force-Sae | 393415.62 lb (1750 kN) |
| Minimum Swing Radius | 480.32 in (12200 mm) |
| Boom/Stick Option (Hex) 2 | Boom-11.5 m 37 ft. 9 in. / Arm 5.8 m 19 ft. |
| Max Digging Depth | 27.56 ft in (8400 mm) |
| Bucket Digging Force - Iso | 454114.03 lb (2020 kN) |
| Min Dumping Height | 16.41 ft in (5000 mm) |
| Max Digging Reach | 73.17 ft in (22300 mm) |
| Bucket Digging Force - Sae | 427136.96 lb (1900 kN) |
| Max Vertical Wall Digging Depth | 10.83 ft in (3300 mm) |
| Max.Dumping Height | 39.05 ft in (11900 mm) |
| Max Digging Reach On Ground | 70.21 ft in (21400 mm) |
Dimensions
| Ground Clearance | 4.11 ft in (1250 mm) |
| Track Gauge | 22.31 ft in (6800 mm) |
| Tailswing Radius | 27.17 ft in (8280 mm) |
| Dump Height - Mono Boom | 39.05 ft in (11900 mm) |
| Ground Level Reach - Mono Boom | 70.21 ft in (21400 mm) |
| Track Length On Ground | 25.92 ft in (7900 mm) |
| Transport Height - Maximum | 32.49 ft in (9900 mm) |
| Transport Length | 522.05 in (13260 mm) |
| Undercarriage Overall Length | 34.45 ft in (10500 mm) |
| Width Over Standard Tracks | 28.38 ft in (8650 mm) |
| Overall Width | 28.38 ft in (8650 mm) |
| Dig Depth | 330.71 in (8400 mm) |
| Dig Depth - 2.44m 8 Ft Flat Bottom | 27.24 ft in (8300 mm) |
| Dig Height - Mono Boom | 62.34 ft in (19000 mm) |
| Digging Reach - Mono Boom | 73.17 ft in (22300 mm) |
Engine
| Emissions Certification | U.S.EPA Tier 2 |
| Starting System | 24 V electric motor |
| Piston Displacement | 7322.9 cu in (120 L) |
| Engine Model | Cummins QSKTA60-CE |
| Engine Type | 4 cycle |
| Gross Power | 3889 hp (2900 kw) |
| Net Power | 3889 hp (2900 kw) |
| Aspiration | Water-cooled, 16-cylinder, turbocharged and aftercooled, direct-injection chamber-type diesel engine |
| Bore | 6.3 in (159 mm) |
| Stroke | 7.5 in (190 mm) |
| Maximum Torque | 16728 Nm |
Driveline
| Displacement | 3661.5 cu in (60 L) |
| Emission Rating | Tier 2 |
| Rated Speed | 1800 rpm |
| Carrier Rollers - Each Side | 3 |
| Track Rollers - Each Side | 7 |
| Track Shoe Width | 72.9 in (1850 mm) |
| Number Of Cylinders | 16 |
Capacities
| Hydraulic Oil Tank | 1027.7 gal (3890 L) |
| Fuel Tank | 3936.2 gal (14900 L) |
Performance
| Ground Bearing Pressure | 36.5 psi (251.7 kPa) |
| Dipper Tearout | 397911.8 lb (1770 kN) |
