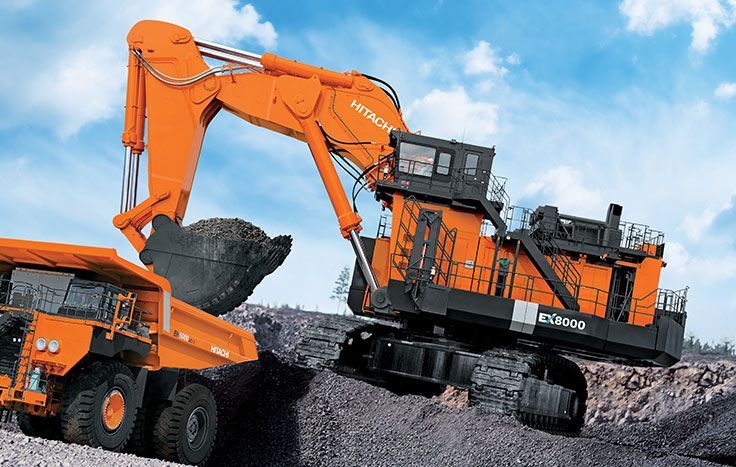

Hitachi EX8000
Contents:
Dimensions
| Width Over Tracks | 28.38 ft in (8650 mm) |
| Length Of Track On Ground | 25.92 ft in (7900 mm) |
| Height To Top Of Cab | 32.5 ft in (9900 mm) |
| Tail Swing Radius | 27.17 ft in (8280 mm) |
| Ground Clearance | 4.08 in (1250 mm) |
| Length Of Tracks | 34.45 ft in (10500 mm) |
| Upper Structure Ground Clearance | 11.26 ft in (3430 mm) |
Loading Shovel
| Max Dig Reach | 60.58 ft in (18500 mm) |
| Max Dump Height | 45.25 ft in (13800 mm) |
| Max Cutting Height | 67.25 ft in (20500 mm) |
| Max Dig Depth | 13.42 ft in (4100 mm) |
| Arm Crowd Force | 2116.81 lb ft (2870 Nm) |
Undercarriage
| Tail Swing Radius | 27.17 ft in (8280 mm) |
| Loading Shovel Shoe Width | 72.84 in (1850 mm) |
| Track Gauge | 22.31 ft in (6800 mm) |
| Loading Shovel Ground Pressure | 34.09 psi (235 kPa) |
| Max Travel Speed | 1.2 mph (2 km/h) |
| Number Of Lower Rollers | 7 |
| Number Of Track Shoes Per Side | 39 |
| Number Of Upper Rollers | 3 |
| Loading Shovel Operating Weight | 1719605.54 lb (780000 kg) |
Engine
| Number Of Cylinders | 16 |
| Engine Make | 2243 |
| Engine Model | S16R-Y1TAA2 |
| Net Power | 3754.9 hp (2800 kw) |
| Gross Power | 3754.9 hp (2800 kw) |
| Power Measured @ | 1600 rpm |
| Aspiration | turbocharged, air-cooled, intercooler |
| Displacement | 7982 cu in (130.8 L) |
Operational
| Fuel Capacity | 3800 gal (14400 L) |
| Cooling System Fluid Capacity | 179.8 gal (680 L) |
| Engine Oil Capacity | 163.8 gal (620 L) |
| Hydraulic System Fluid Capacity | 2110 gal (8000 L) |
| Swing Speed | 3.2 rpm |
| Operating Voltage | 24 V |
Buckets
| Reference Bucket Capacity | 52.4 yd3 (40 m3) |
