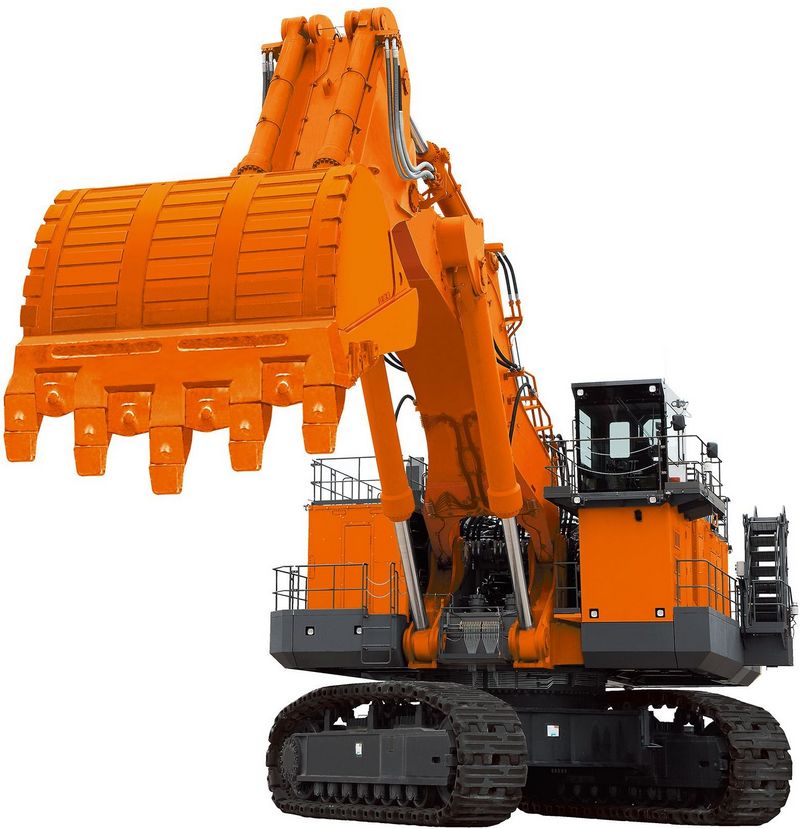

Hitachi EX600-6
Contents:
Backhoe Boom / Stick 1
| Max Dig Depth | 28.15 ft in (8580 mm) |
| Max Vertical Wall Dig Depth | 13.33 ft in (4060 mm) |
| Max Cutting Height | 58.04 ft in (17690 mm) |
| Max Dump Height | 38.03 ft in (11590 mm) |
| Max Reach On Ground | 57.75 ft in (17600 mm) |
| Arm Crowd Force | _ - (951 Nm) |
| Backhoe Boom / Stick | BE-Boom length 10700 millimeters, height 3510 millimeters, width 2540 millimeters / Arm length 6040 millimeters, height 2930 millimeters, width 2110 millemeters |
Dimensions
| Width Over Tracks | _ - (9420 mm) |
| Length Of Track On Ground | 21.86 ft in (6660 mm) |
| Height To Top Of Cab | 25.69 ft in (7830 mm) |
| Ground Clearance | 2.97 in (905 mm) |
| Height Of Tracks | _ - (2305 mm) |
| Length Of Tracks | 28.55 ft in (8700 mm) |
| Upper Structure Ground Clearance | 8.01 ft in (2440 mm) |
Loading Shovel
| Max Dig Reach | 49.94 ft in (15220 mm) |
| Max Dump Height | 36.06 ft in (10990 mm) |
| Max Cutting Height | 53.48 ft in (16300 mm) |
| Max Dig Depth | 12.83 ft in (3910 mm) |
| Arm Crowd Force | _ - (1200 Nm) |
| Loading Shovel | BE-Boom length 2570 millimeters, height 2350 millimeters, width 2570 millimeters / Arm length 5100 millimeters, height 2070 millimeters, width 2900 millimeters |
Undercarriage
| Loading Shovel Shoe Width | 50 in (1270 mm) |
| Backhoe Shoe Width 1 | 50 in (1270 mm) |
| Number Of Lower Rollers | 8 Lower rollers |
| Number Of Track Shoes Per Side | 38 Tracks per side |
| Number Of Upper Rollers | 3 Upper rollers |
| Backhoe Operating Weight - Shoe 1 | 791459.57 lb (359000 kg) |
| Backhoe Ground Pressure - Shoe 1 | 27.27 psi (188 kPa) |
| Loading Shovel Operating Weight | 795868.82 lb (361000 kg) |
| Loading Shovel Ground Pressure | 27.42 psi (189 kPa) |
| Max Travel Speed | 1.37 mph (2.21 km/h) |
Engine
| Engine Make | 2347 |
| Engine Model | QSKTA60-CE |
| Net Power | 1944 hp (1450 kw) |
| Gross Power | 1944 hp (1450 kw) |
| Displacement | 3661.5 cu in (60 L) |
Operational
| Fuel Capacity | 1968.1 gal (7450 L) |
| Cooling System Fluid Capacity | 162.3 gal (614 L) |
| Engine Oil Capacity | 144 gal (545 L) |
| Hydraulic System Fluid Capacity | 1056.7 gal (4000 L) |
| Swing Speed | 3.2 rpm |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 140 amps |
