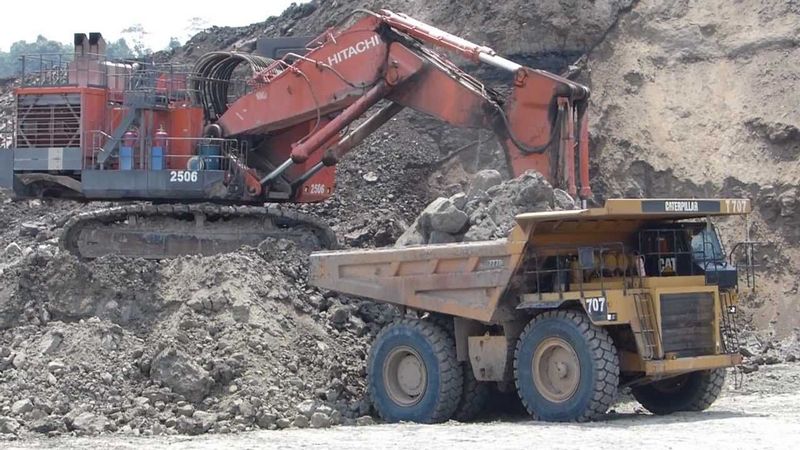

Hitachi EX2500-6
Contents:
Backhoe Boom / Stick 1
| Max Dig Depth | 28.22 ft in (8600 mm) |
| Max Vertical Wall Dig Depth | 16.64 ft in (5070 mm) |
| Max Cutting Height | 52.7 ft in (16060 mm) |
| Max Dump Height | 33.9 ft in (10330 mm) |
| Backhoe Boom / Stick | Boom 9000mm/Stick 4200mm |
| Max Reach On Ground | 54.24 ft in (16530 mm) |
Dimensions
| Width Over Tracks | 19.69 ft in (6000 mm) |
| Length Of Track On Ground | 20.08 ft in (6120 mm) |
| Height To Top Of Cab | 23.79 ft in (7250 mm) |
| Ground Clearance | 2.63 in (800 mm) |
| Upper Structure Ground Clearance | 7.03 ft in (2140 mm) |
| Length Of Tracks | 25.83 ft in (7870 mm) |
| Height Of Tracks | 6.76 ft in (2060 mm) |
Loading Shovel
| Max Dig Reach | 46.13 ft in (14060 mm) |
| Max Dump Height | 33.96 ft in (10350 mm) |
| Max Cutting Height | 49.25 ft in (15010 mm) |
| Max Dig Depth | 12.21 ft in (3720 mm) |
Undercarriage
| Tail Swing Radius | 20.64 ft in (6290 mm) |
| Loading Shovel Shoe Width | 39.38 in (1000 mm) |
| Track Gauge | 16.41 ft in (5000 mm) |
| Backhoe Ground Pressure - Shoe 1 | 26.26 psi (181 kPa) |
| Loading Shovel Ground Pressure | 26.26 psi (181 kPa) |
| Backhoe Shoe Width 1 | 39.38 in (1000 mm) |
| Max Travel Speed | 1.43 mph (2.3 km/h) |
| Backhoe Operating Weight - Shoe 1 | 546746.45 lb (248000 kg) |
| Number Of Lower Rollers | 8 |
| Number Of Track Shoes Per Side | 39 |
| Number Of Upper Rollers | 3 |
| Loading Shovel Operating Weight | 548951.07 lb (249000 kg) |
Engine
| Number Of Cylinders | 16 |
| Engine Make | 2347 |
| Engine Model | QSKTA50-CE |
| Gross Power | 1400 hp (1044 kw) |
| Net Power | 1333 hp (994 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 3051.2 cu in (50 L) |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 1320.9 gal (5000 L) |
| Cooling System Fluid Capacity | 125.8 gal (476 L) |
| Engine Oil Capacity | 99.9 gal (378 L) |
| Hydraulic System Fluid Capacity | 779.4 gal (2950 L) |
| Swing Speed | 3.8 rpm |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 140 amps |
Buckets
| Reference Bucket Capacity | 19.7 yd3 (15 m3) |
| Minimum Bucket Capacity | 19.7 yd3 (15 m3) |
| Maximum Bucket Capacity | 21.6 yd3 (16.5 m3) |
