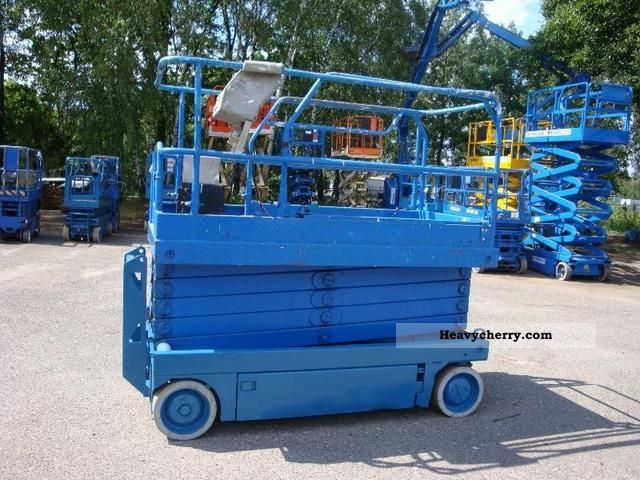

UpRight X32BE
Browse All UpRight or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 11.03 in (3360 mm) |
| Overall Width | 5.81 ft in (1770 mm) |
| Height W/ Rails | 8.86 ft in (2700 mm) |
| Ground Clearance | 13.78 in (350 mm) |
| Height W/O Rails | 6.57 ft in (2000 mm) |
| Turning Radius | 15.1 ft in (4600 mm) |
Platform
| Max Platform Height | 33.14 ft in (10100 mm) |
| Deck Extension | 47.25 in (1200 mm) |
| Max Working Height | 39.7 ft in (12100 mm) |
| Platform Inner Length | 107.88 in (2740 mm) |
| Platform Inner Width | 64.97 in (1650 mm) |
| Max Platform Weight Capacity | 992.09 lb (450 kg) |
Engine
| Engine Make | 2334 |
| Engine Model | D-905 |
| Gross Power | 22.5 hp (16.8 kw) |
| Fuel Type | diesel |
| System Voltage | 24 V |
| Number Of Batteries | 4.0000 |
| Battery Amp Hours | 305.0000 |
Operational
| Operating Weight | 8642.2 lb (3920 kg) |
| Max Speed | 2.8 mph (4.5 km/h) |
| Tire Size | 27-10.5-15 |
| Tire Fill/Type | poly filled / non-marking |
