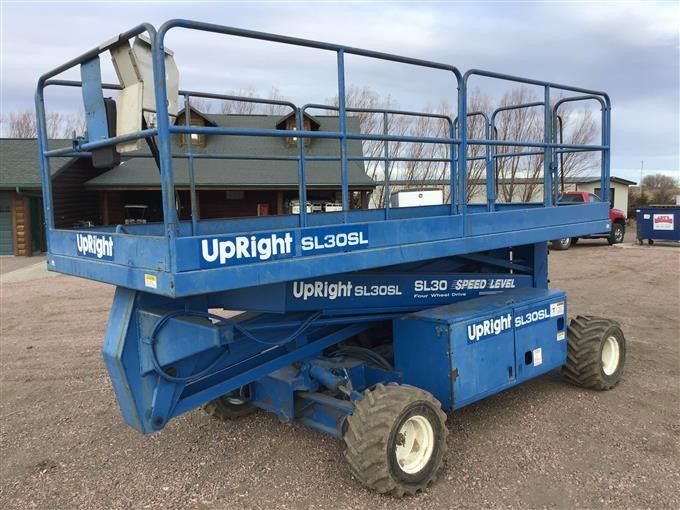

UpRight SL30SL
Browse All UpRight or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 14.41 in (4390 mm) |
| Wheelbase | 8.34 ft in (2540 mm) |
| Overall Width | 6.99 ft in (2130 mm) |
| Height W/ Rails | 8.54 ft in (2600 mm) |
| Ground Clearance | 7.88 in (200 mm) |
Platform
| Max Platform Height | 29.53 ft in (9000 mm) |
| Max Working Height | 36.09 ft in (11000 mm) |
| Max Platform Weight Capacity | 1300.73 lb (590 kg) |
| Platform Inner Length | 166.54 in (4230 mm) |
| Platform Inner Width | 67.72 in (1720 mm) |
| Lift Time | 24 sec |
| Lower Time | 36 sec |
Engine
| Engine Make | 2351 |
| Fuel Type | diesel |
Operational
| Operating Weight | 7090.1 lb (3216 kg) |
| Max Speed | 3.2 mph (5 km/h) |
| Tire Size | 26 x 12-12 NHS |
| Tire Fill/Type | poly filled / Super Terra-Grip |
