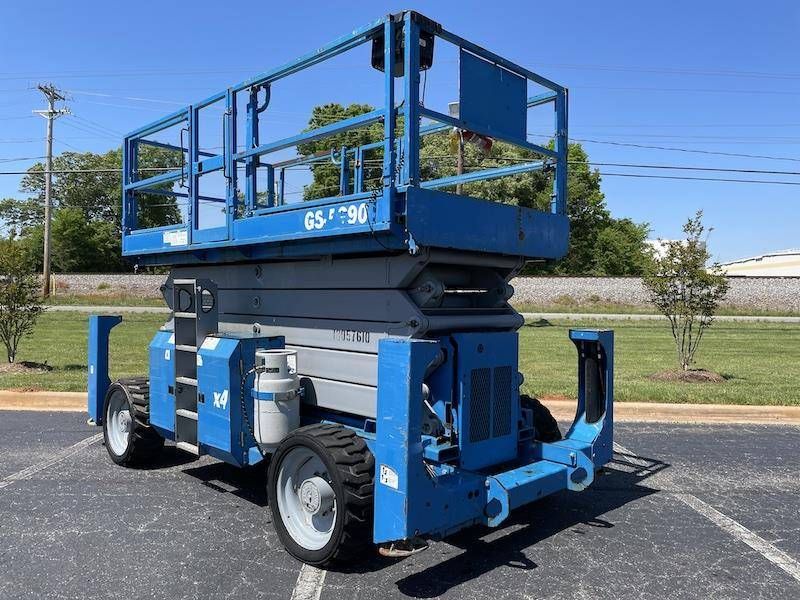

Terex GS5390RT
Browse All Terex or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 16.02 in (4880 mm) |
| Wheelbase | 9.32 ft in (2840 mm) |
| Overall Width | 7.75 ft in (2360 mm) |
| Height W/ Rails | 10.34 ft in (3150 mm) |
| Ground Clearance | 14.18 in (360 mm) |
| Gradeability | 40 % |
| Turning Radius - Outside | 17.49 ft in (5330 mm) |
| Turning Radius - Inside | 7.09 ft in (2160 mm) |
| Height W/O Rails | 8.11 ft in (2470 mm) |
Platform
| Max Platform Height | 52.99 ft in (16150 mm) |
| Deck Extension | 59.85 in (1520 mm) |
| Max Working Height | 59.55 ft in (18150 mm) |
| Platform Inner Length | 156.7 in (3980 mm) |
| Platform Inner Width | 72.05 in (1830 mm) |
| Max Platform Weight Capacity | 1499.15 lb (680 kg) |
| Lower Time | 49 sec |
| Lift Time | 55 sec |
Engine
| Engine Make | 2380 |
| Engine Model | DSG-423 |
| Gross Power | 75 hp (56 kw) |
| Fuel Type | Gas/LPG |
Operational
| Operating Weight | 16567.8 lb (7515 kg) |
| Fuel Capacity | 30.1 gal (113.6 L) |
| Hydraulic System Fluid Capacity | 30.1 gal (113.6 L) |
| Max Speed | 4 mph (6.4 km/h) |
| Tire Size | 12 x 33 |
| Tire Fill/Type | Foam-filled rough terrain |
