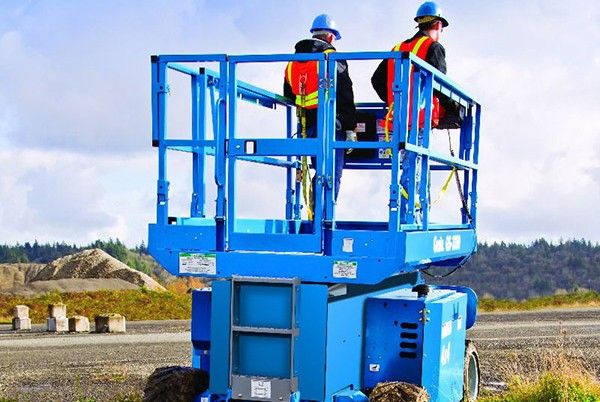

Terex GS3369DC
Browse All Terex or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 122.84 in (3120 mm) |
| Wheelbase | 7.52 ft in (2290 mm) |
| Overall Width | 5.75 ft in (1750 mm) |
| Height W/ Rails | 8.5 ft in (2590 mm) |
| Ground Clearance | 9.5 in (241.3 mm) |
| Gradeability | 35 % |
| Turning Radius - Outside | 15.1 ft in (4600 mm) |
| Turning Radius - Inside | 6.93 ft in (2110 mm) |
| Height W/O Rails | 6.3 ft in (1920 mm) |
Platform
| Max Platform Height | 32.8 ft in (9997.44 mm) |
| Deck Extension | 59.85 in (1520 mm) |
| Max Working Height | 38.8 ft in (11826.24 mm) |
| Platform Inner Length | 109.85 in (2790 mm) |
| Platform Inner Width | 63 in (1600 mm) |
| Max Platform Weight Capacity | 1000.9 lb (454 kg) |
| Lower Time | 29 sec |
| Lift Time | 39 sec |
Engine
| Battery | 8 |
| System Voltage | 48 V |
| Battery Amp Hours | 225 |
Operational
| Operating Weight | 7672.1 lb (3480 kg) |
| Hydraulic System Fluid Capacity | 18 gal (68.1 L) |
| Max Speed | 4.5 mph (7.2 km/h) |
| Tire Size | 12 x 26 |
| Tire Fill/Type | Rough terrain |
