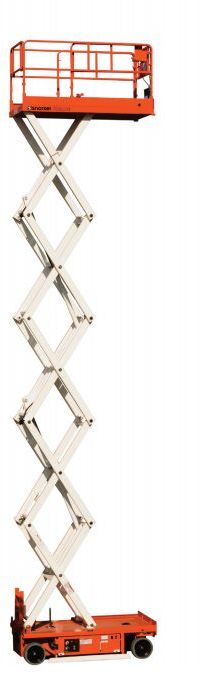

Snorkel S2646
Browse All Snorkel or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 7.88 in (2400 mm) |
| Height W/ Rails | 4.93 ft in (1500 mm) |
| Ground Clearance | 3.98 in (101 mm) |
| Height W/O Rails | 7.42 ft in (2260 mm) |
| Turning Radius | 8.21 ft in (2500 mm) |
Platform
| Max Platform Height | 26.02 ft in (7930 mm) |
| Deck Extension | 35.99 in (914 mm) |
| Platform Inner Length | 93.98 in (2387 mm) |
| Platform Inner Width | 45 in (1143 mm) |
| Max Platform Weight Capacity | 1000.9 lb (454 kg) |
Engine
| System Voltage | 24 V |
| Battery Amp Hours | 245 |
| Charger Amps | 25 amps |
Operational
| Operating Weight | 5147.8 lb (2335 kg) |
| Max Speed | 2 mph (3.2 km/h) |
| Tire Size | 16x5 |
| Tire Fill/Type | Solid Rubber |
