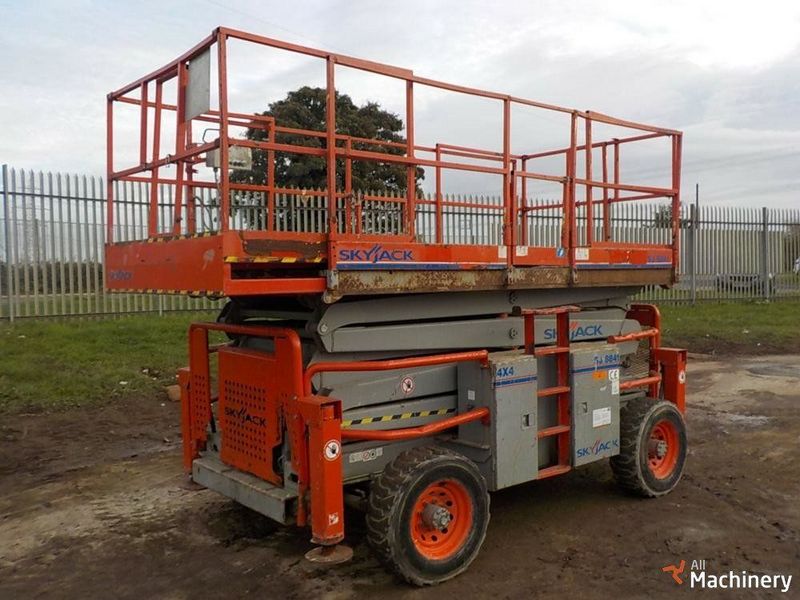

Skyjack SJ8841
Browse All Skyjack or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 11.49 in (3500 mm) |
| Overall Width | 7.22 ft in (2200 mm) |
| Height W/ Rails | 9.52 ft in (2900 mm) |
| Ground Clearance | 8 in (203.2 mm) |
| Turning Radius | 20.67 ft in (6300 mm) |
| Height W/O Rails | 7.22 ft in (2200 mm) |
Platform
| Max Platform Height | 41.02 ft in (12500 mm) |
| Height Of Rails | 2.3 ft in (700 mm) |
| Max Platform Weight Capacity | 1699.77 lb (771 kg) |
| Platform Inner Length | 133.86 in (3400 mm) |
| Platform Inner Width | 66.93 in (1700 mm) |
| Lift Time | 56 sec |
| Max Working Height | 46.92 ft in (14300 mm) |
Engine
| Engine Make | 2374 |
| Gross Power | 65 hp (48.5 kw) |
| Fuel Type | gas/propane |
Operational
| Operating Weight | 10840.2 lb (4917 kg) |
| Max Speed | 3.5 mph (5.6 km/h) |
