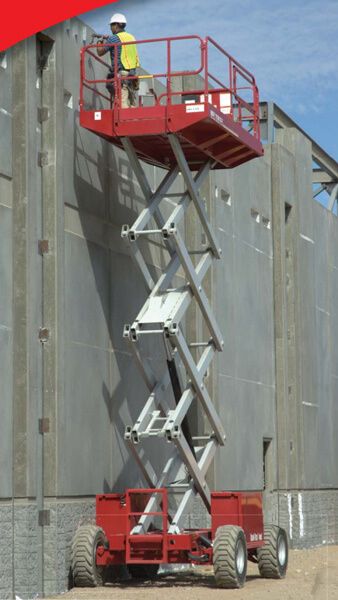

MEC 3391ES
Browse All MEC or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 12.01 in (3660 mm) |
| Wheelbase | 8.54 ft in (2600 mm) |
| Overall Width | 7.58 ft in (2310 mm) |
| Height W/ Rails | 9.13 ft in (2780 mm) |
| Ground Clearance | 12 in (304.8 mm) |
| Height W/O Rails | 6.57 ft in (2000 mm) |
| Turning Radius | 16.25 ft in (4950 mm) |
Platform
| Max Platform Height | 33.01 ft in (10060 mm) |
| Deck Extension | 48.04 in (1220 mm) |
| Height Of Rails | 3.71 ft in (1130 mm) |
| Max Platform Weight Capacity | 1499.15 lb (680 kg) |
| Platform Inner Length | 131.89 in (3350 mm) |
| Lift Time | 35 sec |
| Lower Time | 40 sec |
| Max Working Height | 39.57 ft in (12060 mm) |
Engine
| System Voltage | 48 V |
| Number Of Batteries | 8 |
| Battery Amp Hours | 375 |
Operational
| Operating Weight | 9303.6 lb (4220 kg) |
| Hydraulic System Fluid Capacity | 23 gal (87 L) |
| Max Speed | 2.7 mph (4.2 km/h) |
| Tire Size | 12-16.5 NHS "outrigger" |
