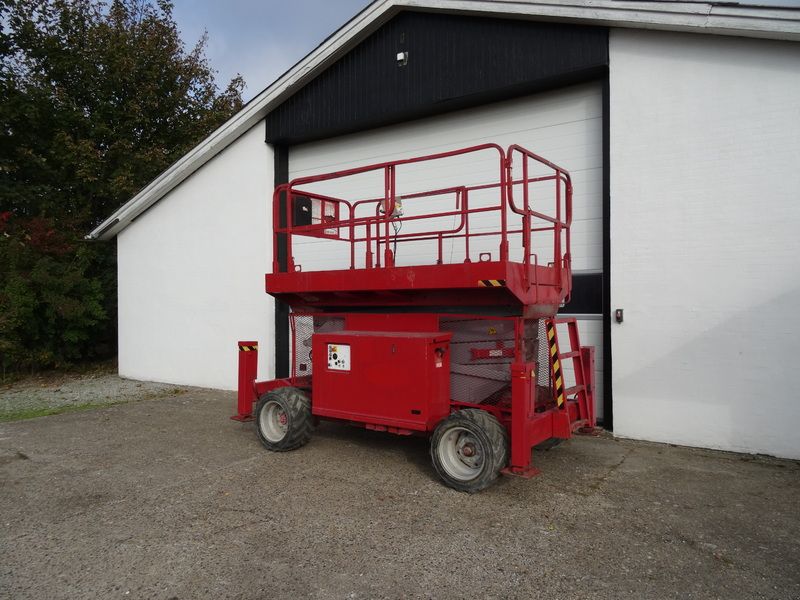

MEC 3072RT
Browse All MEC or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 9.78 in (2980 mm) |
| Wheelbase | 7.16 ft in (2180 mm) |
| Overall Width | 6.01 ft in (1830 mm) |
| Height W/ Rails | 9.03 ft in (2750 mm) |
| Ground Clearance | 8.39 in (213 mm) |
| Height W/O Rails | 6.57 ft in (2000 mm) |
| Turning Radius | 14.21 ft in (4330 mm) |
Platform
| Max Platform Height | 29.99 ft in (9140 mm) |
| Deck Extension | 48.04 in (1220 mm) |
| Height Of Rails | 3.61 ft in (1100 mm) |
| Max Platform Weight Capacity | 1000.9 lb (454 kg) |
| Platform Inner Length | 109.85 in (2790 mm) |
| Lift Time | 26 sec |
| Lower Time | 28 sec |
| Max Working Height | 36.55 ft in (11140 mm) |
Engine
| Engine Make | 0 |
| Fuel Type | gas/LP |
Operational
| Operating Weight | 7339.2 lb (3329 kg) |
| Max Speed | 4 mph (6.4 km/h) |
| Tire Size | 26x12D/380 NHS |
