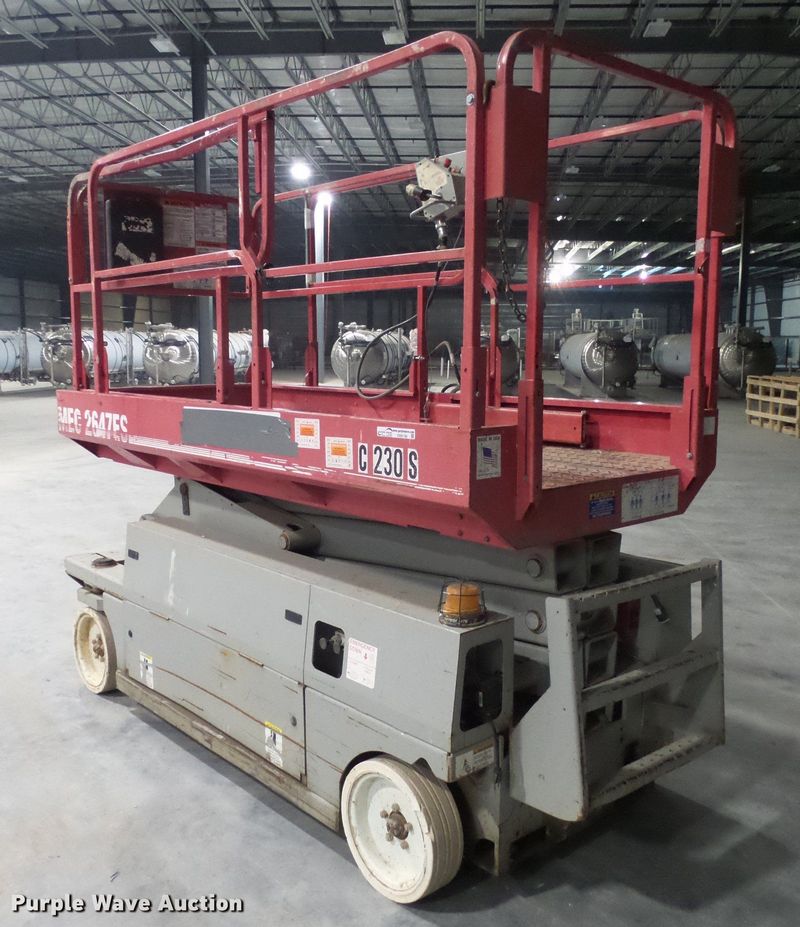

MEC 2647ES
Browse All MEC or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 8.24 in (2510 mm) |
| Wheelbase | 5.91 ft in (1800 mm) |
| Overall Width | 3.91 ft in (1190 mm) |
| Height W/ Rails | 7.46 ft in (2271 mm) |
| Ground Clearance | 3.5 in (88.9 mm) |
| Height W/O Rails | 5.94 ft in (1810 mm) |
| Turning Radius | 7.88 ft in (2400 mm) |
Platform
| Max Platform Height | 25.99 ft in (7920 mm) |
| Deck Extension | 42.13 in (1070 mm) |
| Height Of Rails | 3.61 ft in (1100 mm) |
| Max Platform Weight Capacity | 1000.9 lb (454 kg) |
| Platform Inner Length | 90.95 in (2310 mm) |
| Lift Time | 30 sec |
| Lower Time | 35 sec |
| Max Working Height | 32.55 ft in (9920 mm) |
Engine
| System Voltage | 24 V |
Operational
| Operating Weight | 5300 lb (2404 kg) |
| Hydraulic System Fluid Capacity | 4.5 gal (17.1 L) |
| Max Speed | 2.5 mph (4 km/h) |
| Tire Size | 16x5 |
| Tire Fill/Type | Solid, non-marking |
