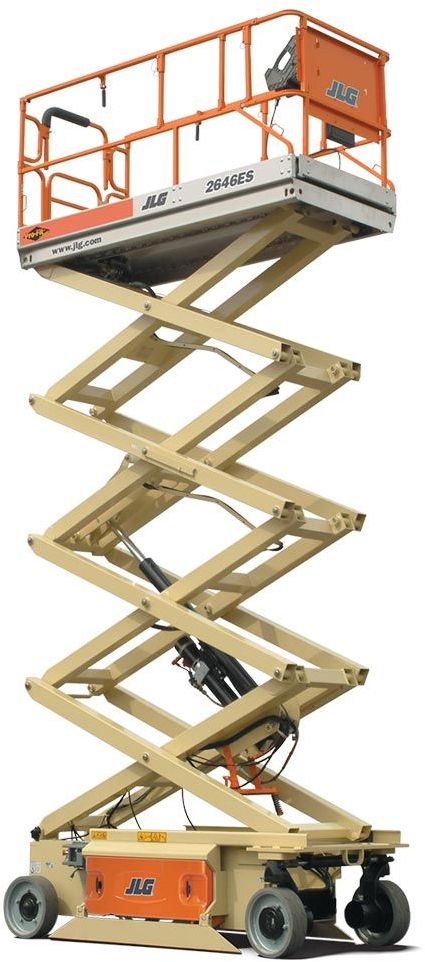

JLG 2646ES
Browse All JLG or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 100 in (2540 mm) |
| Wheelbase | 6.1 ft in (1859.28 mm) |
| Overall Width | 3.84 ft in (1170 mm) |
| Height W/ Rails | 78 ft in (23774.4 mm) |
| Ground Clearance | 5 in (127 mm) |
| Platform Dimension B | 3.8 ft in (1.16 m) |
| Platform Dimension A | 8.31 ft in (2.53 m) |
| Overall Height | 7.9 ft in (2407.92 mm) |
| Height W/O Rails | 6.47 ft in (1970 mm) |
| Turning Radius | 7.11 ft in (2167.13 mm) |
Platform
| Max Platform Height | 25.99 ft in (7920 mm) |
| Deck Extension | 35.44 in (900 mm) |
| Height Of Rails | 3.61 ft in (1100 mm) |
| Platform Capacity - Extension | 250 lb (113.4 kg) |
| Platform Capacity - Unrestricted | 1000 lb (453.6 kg) |
| Max Platform Weight Capacity | 1000.9 lb (454 kg) |
| Lower Time | 50 sec |
| Max Working Height | 32 ft in (9753.6 mm) |
| Platform Inner Width | 44.1 in (1120 mm) |
| Platform Railing Height | 25.99 ft in (7.92 m) |
| Lift Time | 41 sec |
| Platform Inner Length | 98.43 in (2500 mm) |
Engine
| Maximum Ground Bearing Pressure | 87 psi (599.9 kPa) |
| System Voltage | 24 V |
| Number Of Batteries | 4 |
| Battery Amp Hours | 200 |
| Charger Amps | 20 amps |
Operational
| Operating Weight | 4768.6 lb (2163 kg) |
| Hydraulic System Fluid Capacity | 1.7 gal (6.4 L) |
| Max Speed | 2.5 mph (4 km/h) |
| Tire Size | 16x5 in |
| Tire Fill/Type | Solid, Non-marking |
| Hydraulic Pump Type | Fixed Displacement Gear |
Performance
| Drive Speed - Platform Elevated | 0.5 mph (0.9 km/h) |
| Drive Speed - Platform Lowered | 2.5 mph (4.1 km/h) |
| Maximum Drive Height | 26 ft in (8 m) |
| Maximum Lift Height | 26 ft in (8 m) |
| Gradeability | 25 % |
Brakes
| Brakes Type | Electric, Friction |
